Description
The Short Implants Comprehensive Surgical Kit provides all essential instruments required for Bicon-compatible short implant procedures, from osteotomy preparation and implant placement to sinus elevation, healing abutment installation, and final abutment seating. Designed specifically for locking-taper implant systems, the kit enables clinicians to perform the complete surgical workflow using a single integrated instrument solution.
Features
- Complete Surgical Workflow Coverage
Supports procedures including:
Site measurement
Osteotomy preparation
Implant placement
Internal sinus lift procedures
Healing abutment installation
Definitive abutment seating - Dedicated Locking-Taper Instrumentation
Specialized instruments are engineered specifically for locking-taper implant systems. - Implant Inserters
Designed for controlled implant placement and positioning. - Seating Instruments
Facilitate secure implant and abutment seating according to locking-taper principles. - Retrieval Instruments
Enable efficient component removal when required. - Internal Sinus Lift Support
Includes instruments suitable for sinus elevation procedures associated with short implant protocols. - Organized Surgical Workflow

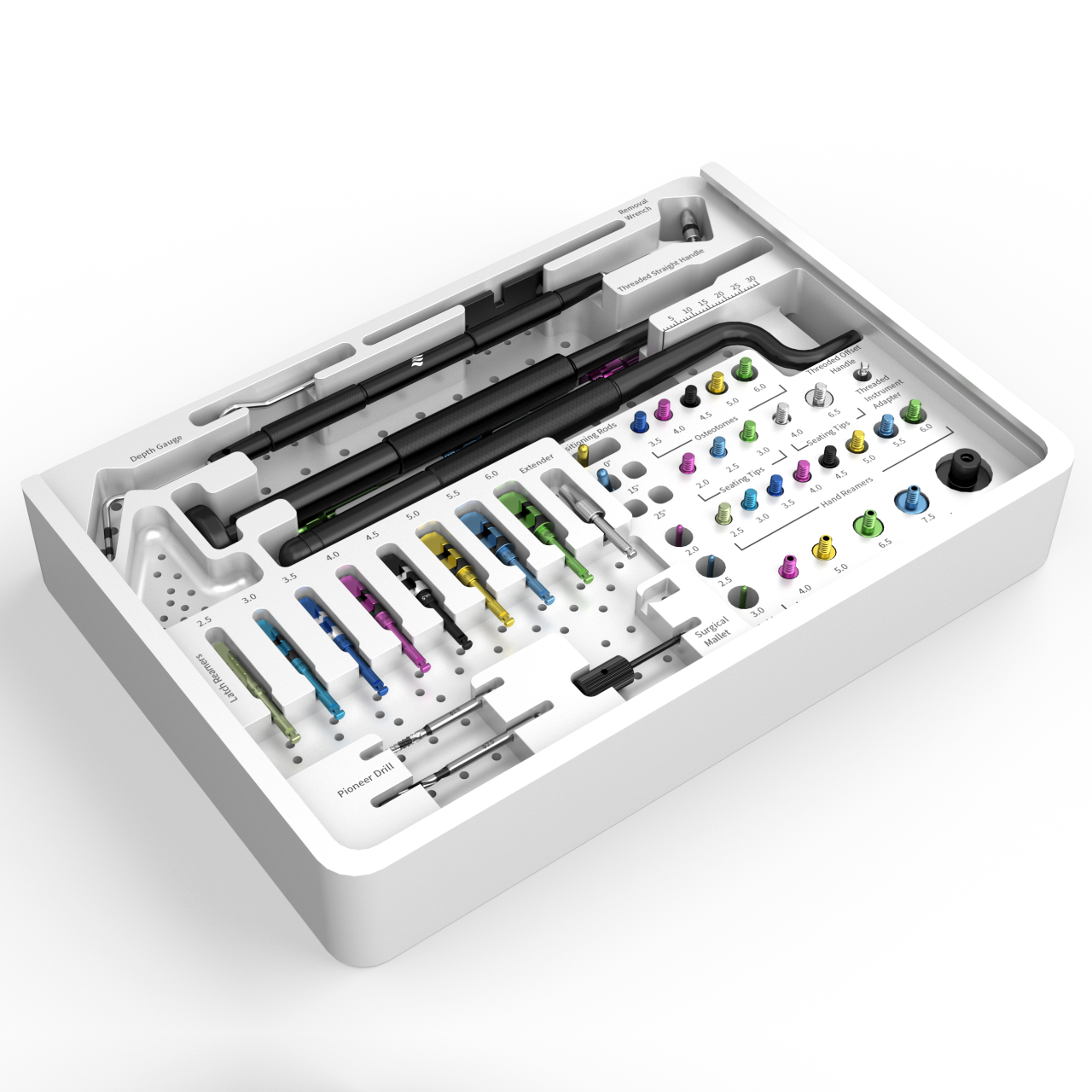

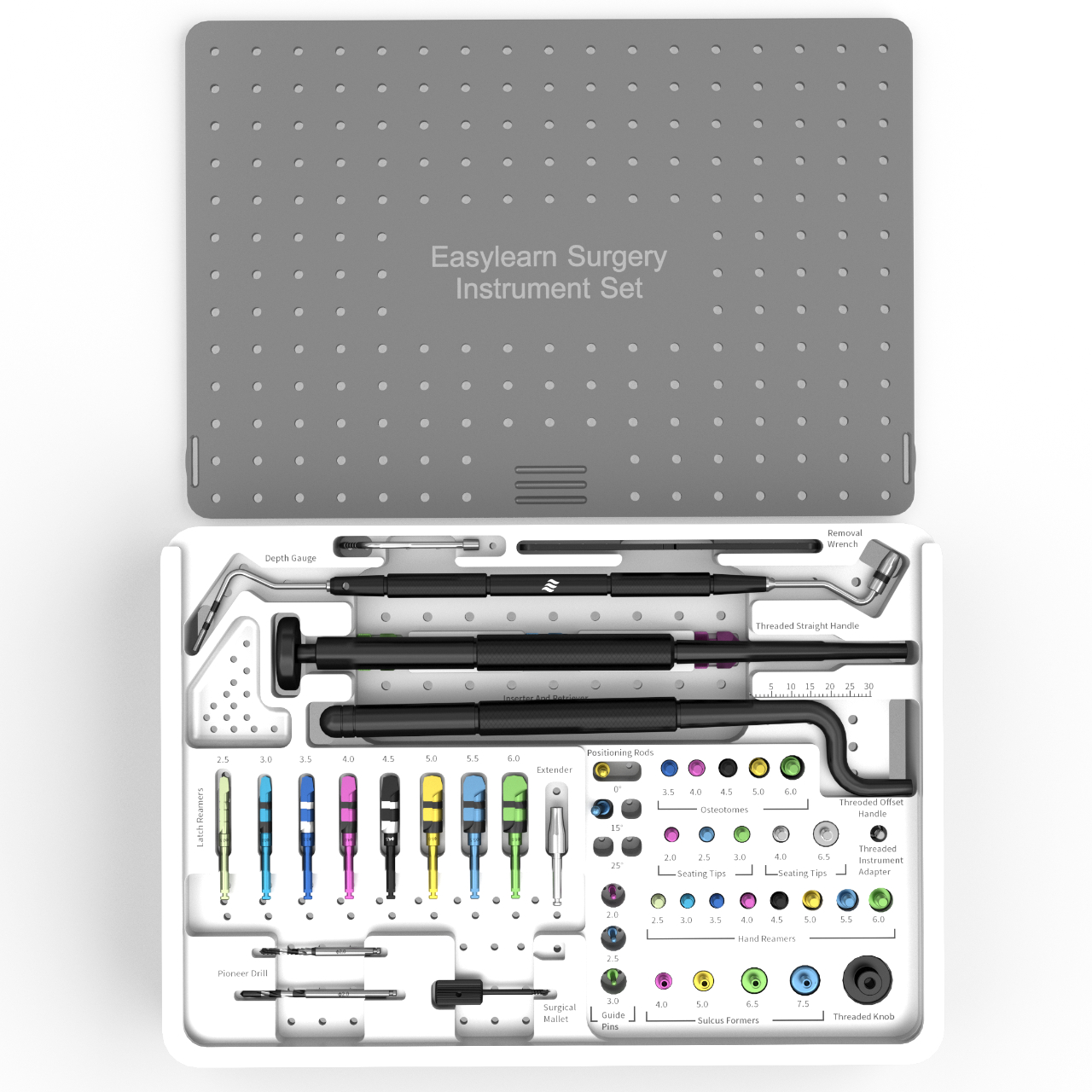

All instruments are stored within a dedicated surgical cassette for efficient chairside access and sterilization.
Product Benefits
For Clinicians:
- Simplify Surgical Procedures
All required instruments are available in a single kit. - Reduce Equipment Costs
Eliminates the need to purchase multiple individual instrument sets. - Improve Workflow Efficiency
Streamlines implant placement and restorative preparation procedures. - Support Predictable Outcomes
Dedicated instrumentation helps achieve proper implant seating and connection stability. - Minimize Procedural Risk
Reduces complications associated with using non-compatible instruments.
For Clinics:
- Faster Surgical Setup
Everything required is organized in one comprehensive system. - Standardized Treatment Protocols
Supports consistent clinical procedures across multiple operators. - Reduced Inventory Complexity
Simplifies instrument management and procurement. - Increased Operational Efficiency
Helps optimize chairside workflow and procedure scheduling.
Why Choose a Dedicated Surgical Kit?
Locking-taper implant systems differ significantly from conventional screw-retained implant systems.
Using non-dedicated instruments may result in:
- Inaccurate osteotomy preparation
- Insufficient implant seating
- Excessive heat generation during drilling
- Damage to implants or abutments
- Reduced connection stability
To achieve predictable clinical outcomes, a surgical kit specifically designed for locking-taper implant protocols is essential.
Indications
Recommended for:
- Short Implant Placement
- Bone-Level Implant Surgery
- Subcrestal Implant Placement
- Internal Sinus Lift Procedures
- Single-Tooth Restorations
- Multi-Unit Implant Cases
- Full-Arch Implant Rehabilitation
- Bicon-Compatible Implant Systems

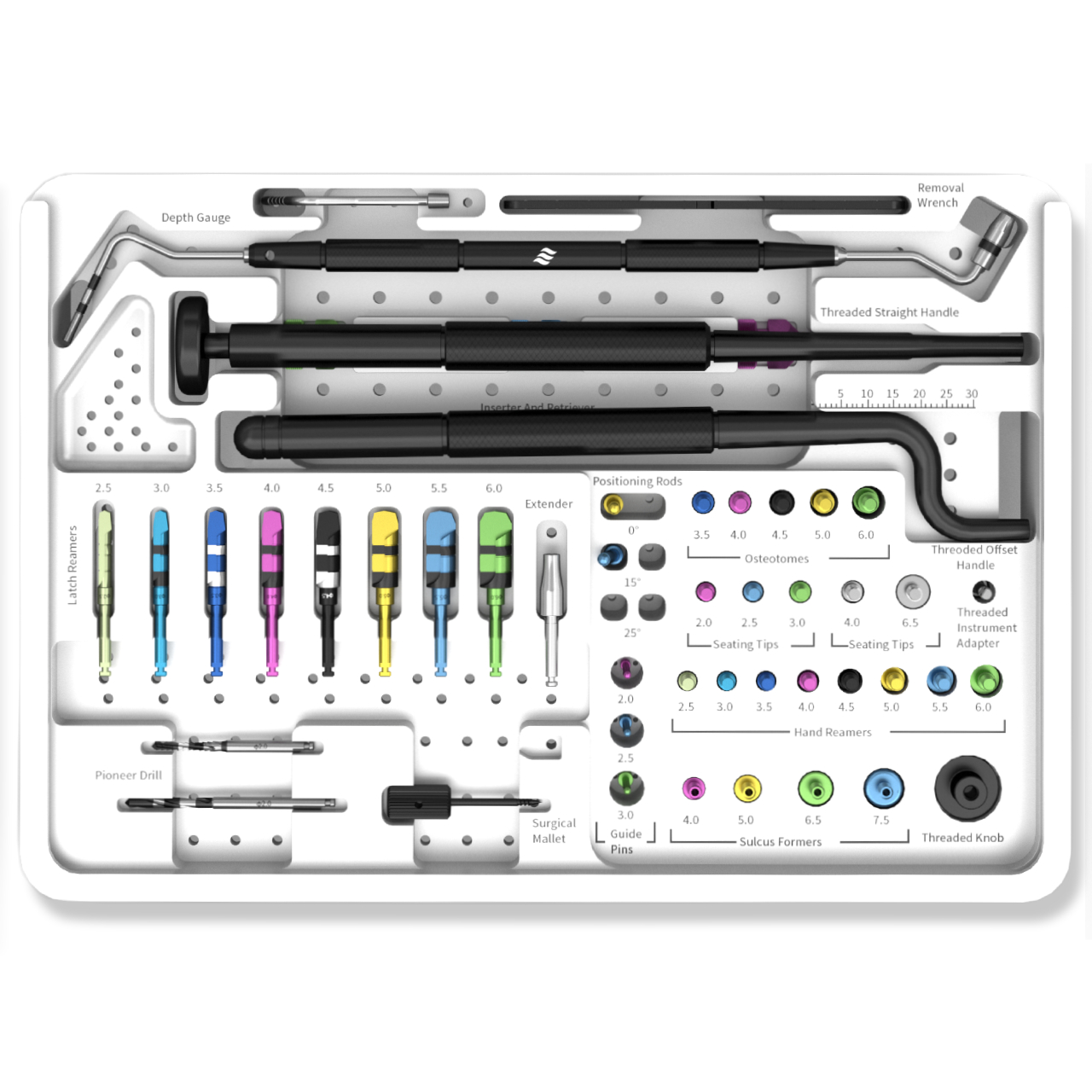

Surgical Kit Includes:
| Name | specifications | quantity |
|---|---|---|
| Pioneer Drill | φ2.0 × 32 mm | 1 |
| Pioneer Drill | φ2.0 × 40 mm | 1 |
| Extender | 25 mm | 1 |
| Positioning Rod | 0° | 1 |
| Positioning Rod | 15° | 1 |
| Double Ended Osteotomy Depth Gauge | φ4.25 / φ1.9 | 1 |
| Abutment Shoulder Depth Gauge | — | 1 |
| Extended Latch Reamer | 2.5 mm | 1 |
| Extended Latch Reamer | 3.0 mm | 1 |
| Extended Latch Reamer | 3.5 mm | 1 |
| Extended Latch Reamer | 4.0 mm | 1 |
| Extended Latch Reamer | 4.5 mm | 1 |
| Extended Latch Reamer | 5.0 mm | 1 |
| Extended Latch Reamer | 5.5 mm | 1 |
| Extended Latch Reamer | 6.0 mm | 1 |
| Hand Reamer | 2.5 mm | 1 |
| Hand Reamer | 3.0 mm | 1 |
| Hand Reamer | 3.5 mm | 1 |
| Hand Reamer | 4.0 mm | 1 |
| Hand Reamer | 4.5 mm | 1 |
| Hand Reamer | 5.0 mm | 1 |
| Hand Reamer | 5.5 mm | 1 |
| Hand Reamer | 6.0 mm | 1 |
| Threaded Straight Handle | — | 1 |
| Threaded Offset Handle | — | 1 |
| Threaded Knob | φ12.3 × 9.5 mm | 1 |
| Threaded Instrument Adapter | φ4 × 20.5 mm | 1 |
| Removal Wrench | 76.5 × 12.7 mm | 1 |
| Seating Tip | 2.0 mm | 1 |
| Seating Tip | 2.5 mm | 1 |
| Seating Tip | 3.0 mm | 1 |
| Standard Seating Tip | φ4 × 9 mm | 1 |
| Large Seating Tip | φ6.3 × 8 mm | 1 |
| Inserter and Retriever | 2.0 mm | 1 |
| Inserter and Retriever | 2.5 mm | 1 |
| Inserter and Retriever | 3.0 mm | 1 |
| Sulcus Former | 4.0 mm | 1 |
| Sulcus Former | 5.0 mm | 1 |
| Sulcus Former | 6.5 mm | 1 |
| Sulcus Former | 7.5 mm | 1 |
| Guide Pin | 2.0 mm | 1 |
| Guide Pin | 2.5 mm | 1 |
| Guide Pin | 3.0 mm | 1 |
| Osteotome | 3.5 mm | 1 |
| Osteotome | 4.0 mm | 1 |
| Osteotome | 4.5 mm | 1 |
| Osteotome | 5.0 mm | 1 |
| Osteotome | 6.0 mm | 1 |
| Comprehensive Surgical Kit | — | 1 |
| Surgical Mallet | — | 1 |
| Healing Plug Removal Instrument | — | 1 |
| Healing Plug Cutter | — | 1 |

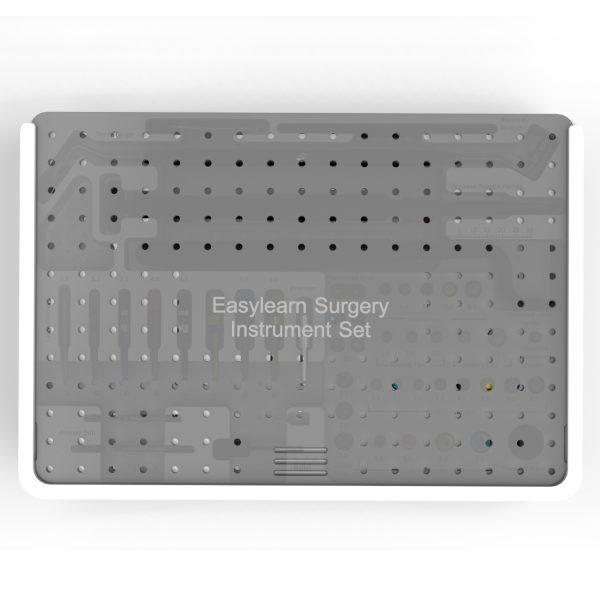

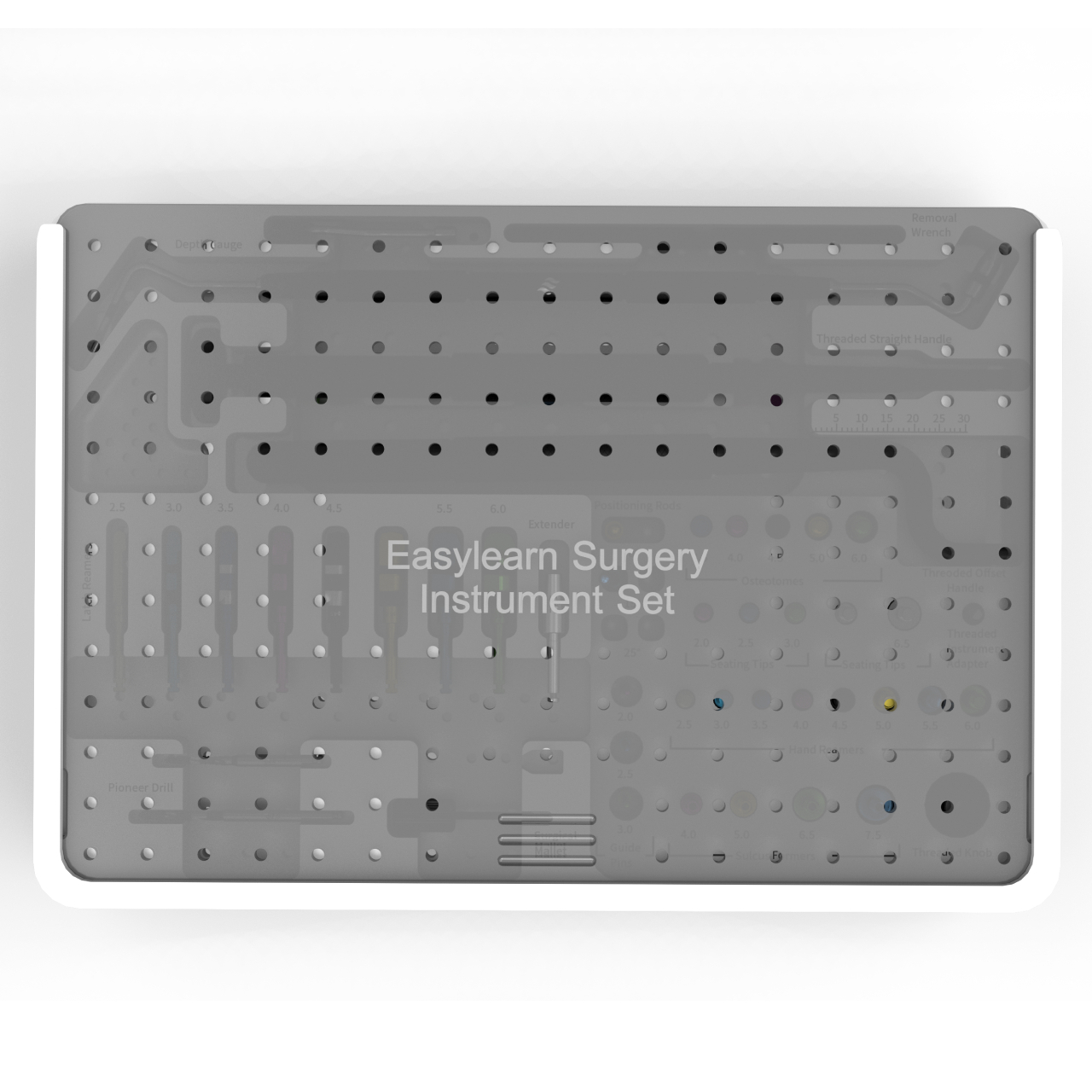

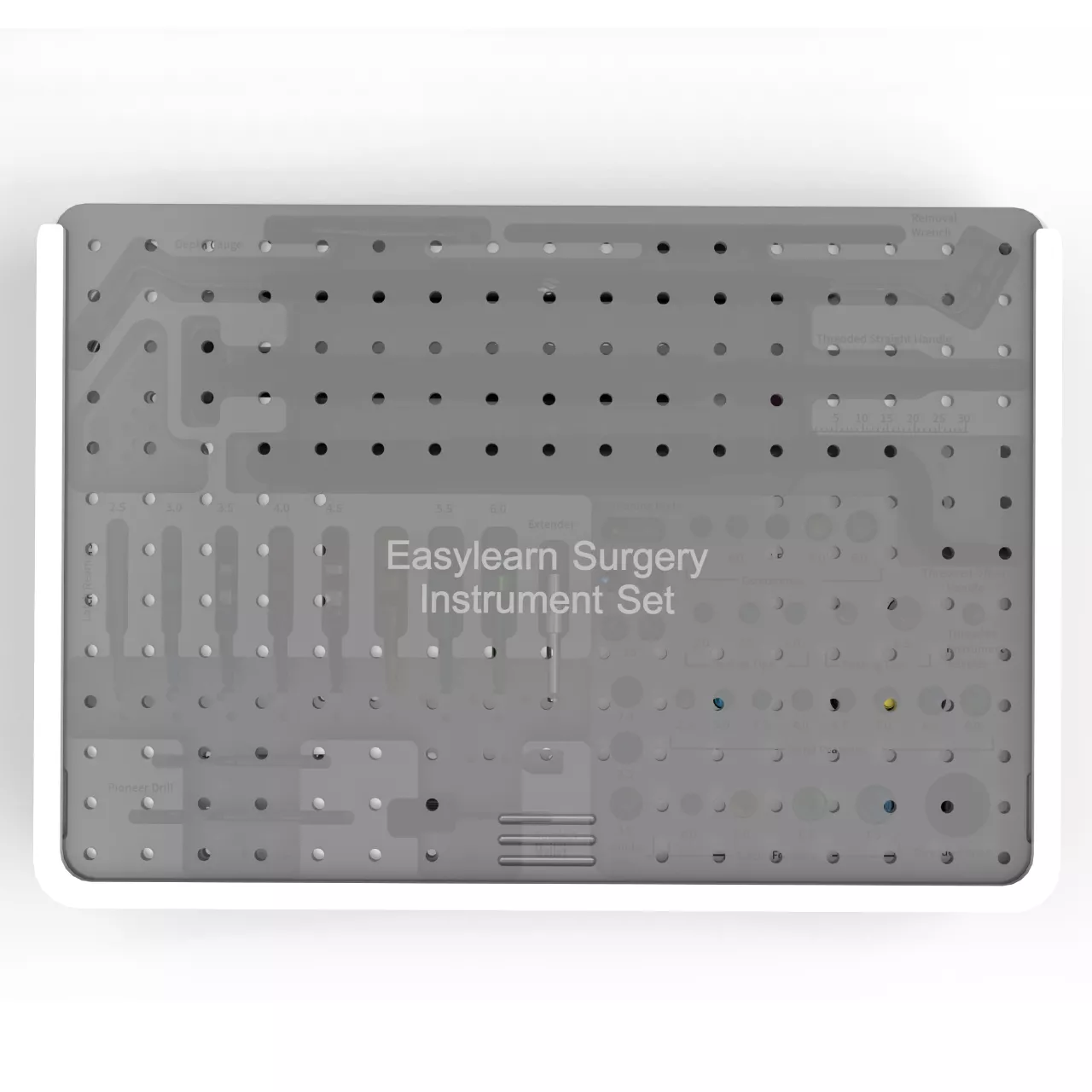

| Comprehensive Surgical Kit Case | — | 1 |
