Description

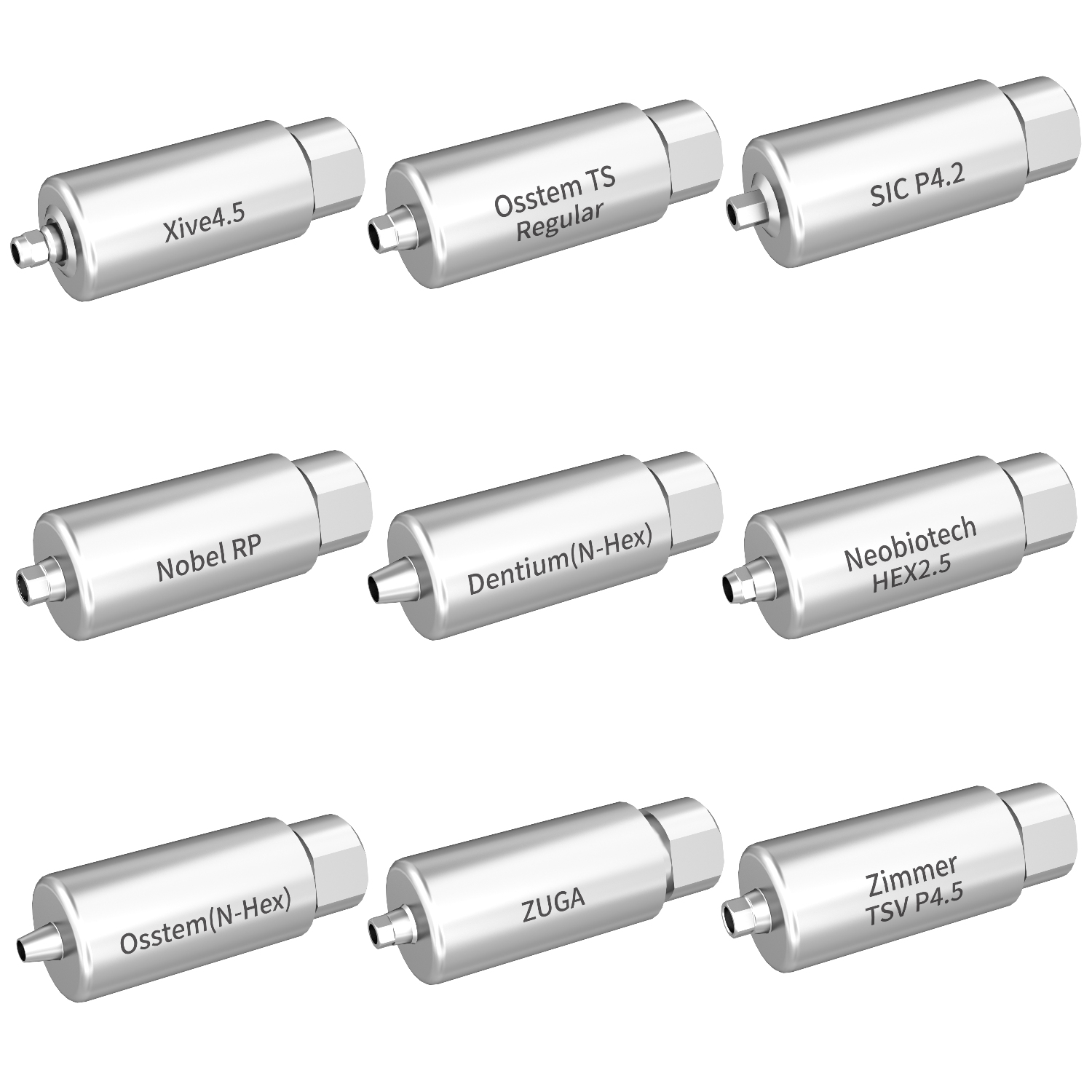

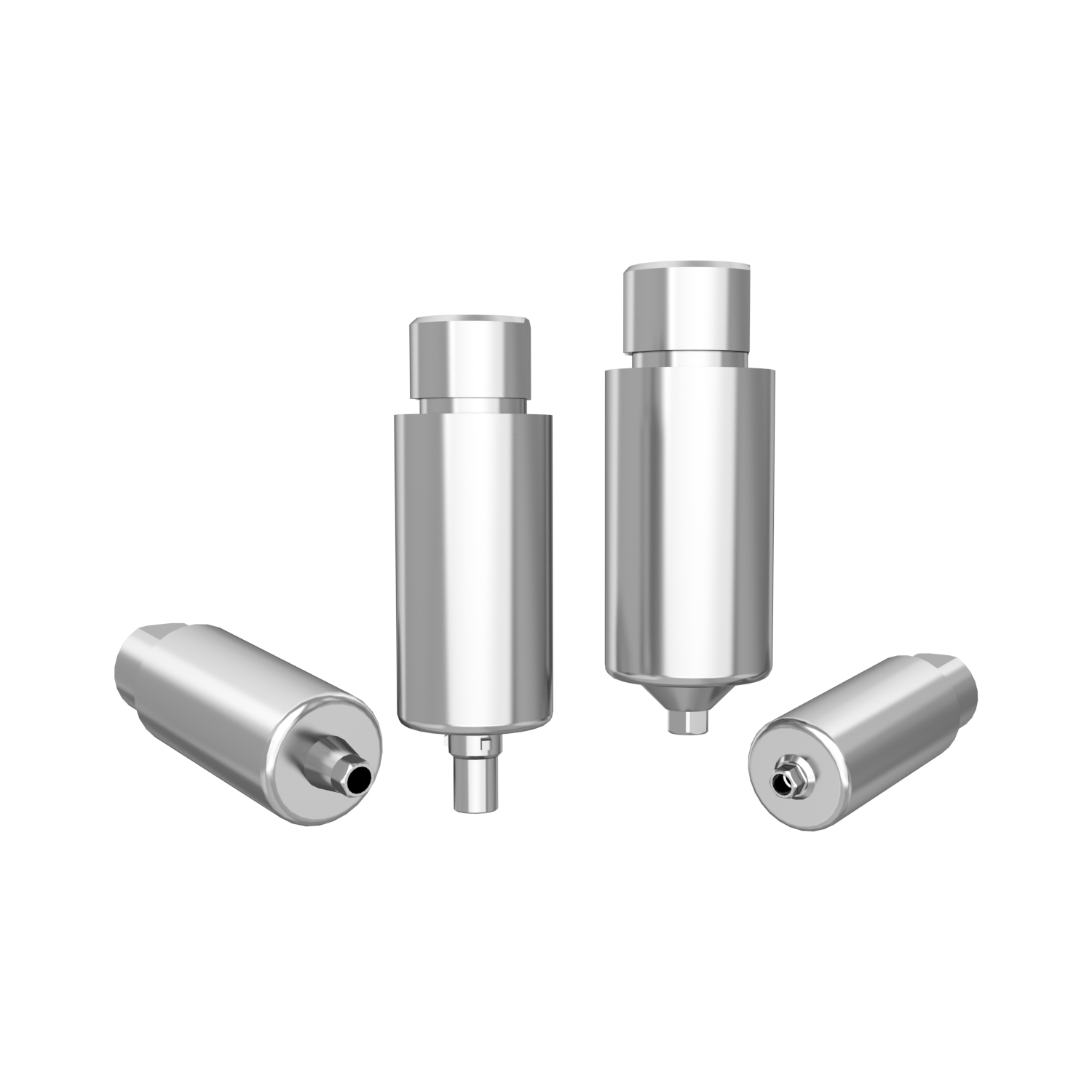

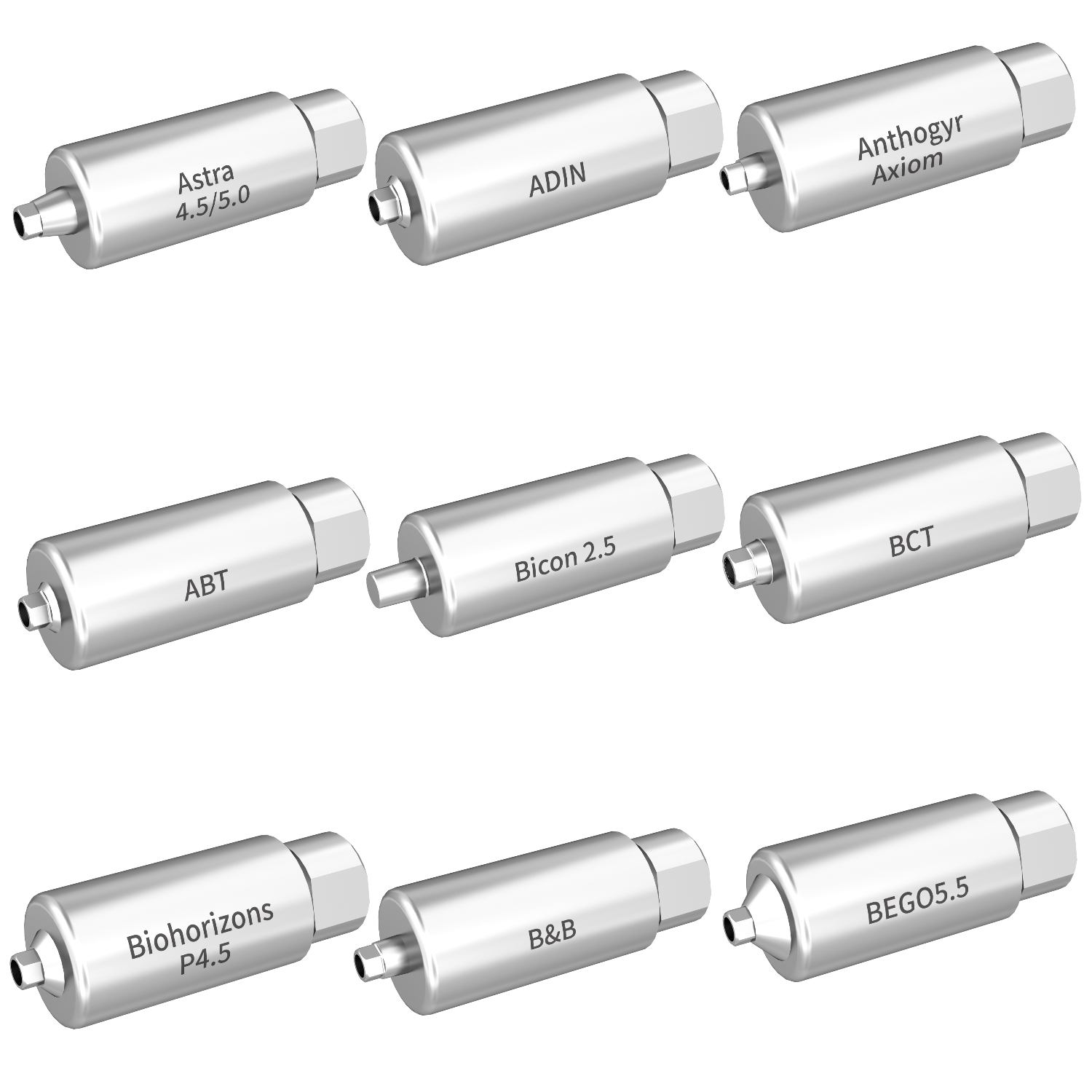

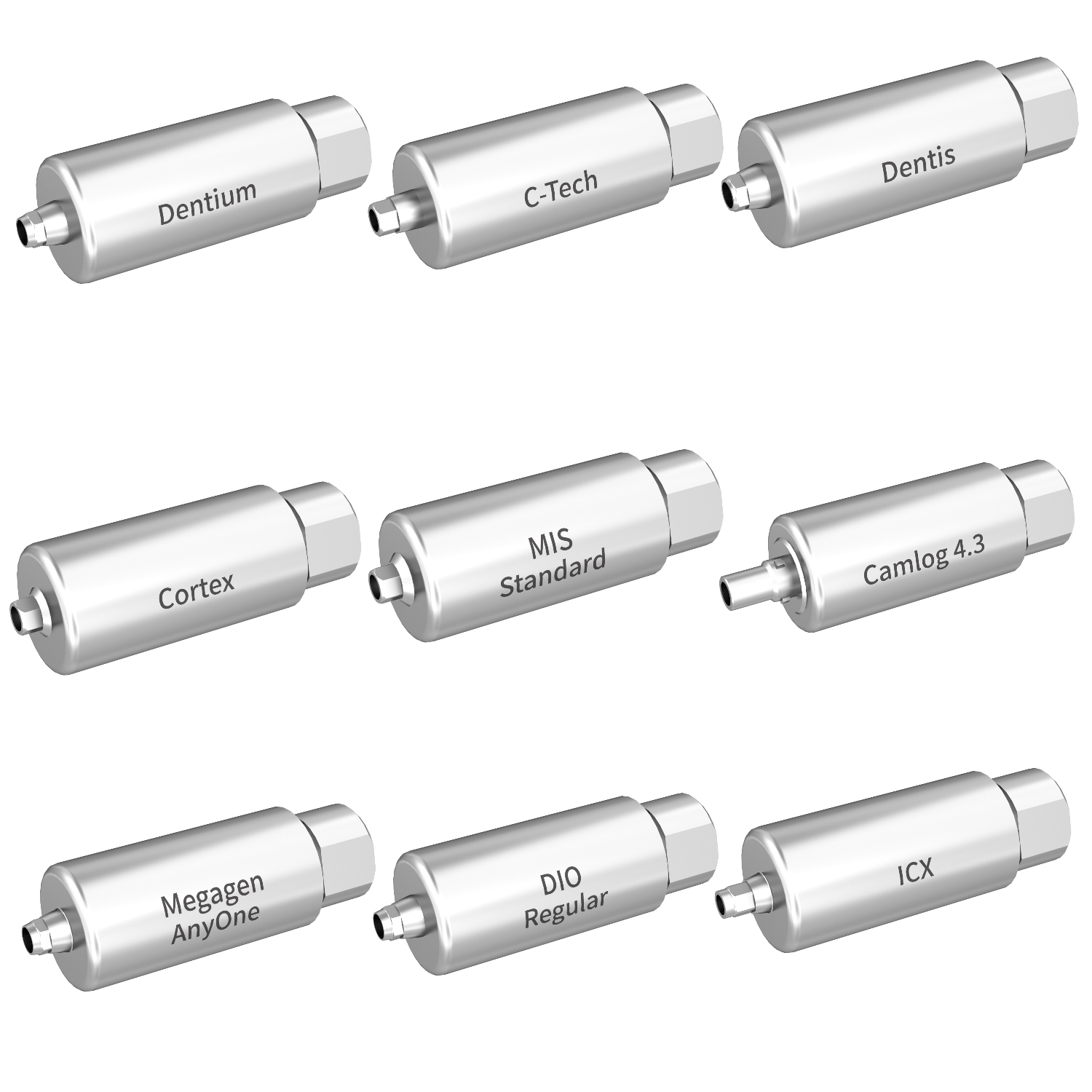

Pre-Milled Titanium Blanks for the fabrication of custom titanium implant abutments using a compatible CAD/CAM milling workflow.
Available in multiple implant connection options, these blanks allow dental laboratories and milling centers to select the connection required for each restoration. The pre-machined implant interface is incorporated into the blank, while the upper portion is milled to create the planned abutment contour.
Available Connection Options
| Product Code | Connection Option* | Manufacturer Model Reference |
|---|---|---|
| DDM7023100050 | Dentium | Z05 R10mm |
| DDM7023100100 | Osstem Regular | Z10 R10mm |
| DDM7023102100 | Osstem Mini | Z10 S10mm |
| DDM7023100090 | Osstem Mini — connection designation to be confirmed | Z09 R10mm |
| DDM7023102090 | Nobel Biocare NP | Z09 S10mm |
| DDM7132602090 | Nobel Biocare 3.5/3.75 | Z09 S10mm |
| DDM7023110010 | Anthogyr | Y01 R10mm |
| DDM7023102020 | Astra 3.5/4.0 | Z02 S10mm |
| DDM7023100020 | Astra 4.5/5.0 | Z02 R10mm |
| DDM7023100030 | B&B | Z03 R10mm |
| DDM7023100150 | NeoBiotech | Z15 R10mm |
| DDM7023100080 | MegaGen | Z08 R10mm |
| DDM7023100060 | DIO | Z06 R10mm |
| DDM7023100140 | Dentis | Z14 R10mm |
| DDM7023100120 | SNUC HEX 2.5 | Z12 R10mm |
| DDM7023101170 | XiVE 3.4 | Z17 M10mm |
| DDM7023102170 | XiVE 3.8 | Z17 S10mm |
| DDM7023100170 | XiVE 4.5 | Z17 R10mm |
| DDM7023103170 | XiVE 5.5 | Z17 L10mm |
| DDM7023120010 | Straumann 4.1/4.8 | X01 R10mm |
All referenced trademarks belong to their respective owners. Brand names are used solely to identify the intended connection options.
Features
- Wide Range of Implant Connections
Available in multiple connection options for selected Dentium, Osstem, Nobel Biocare, Anthogyr, Astra, B&B, NeoBiotech, MegaGen, DIO, Dentis, SNUC, XiVE and Straumann systems, supporting a wide range of custom abutment requirements. - High-Quality Titanium Material
Made from carefully selected titanium, offering corrosion resistance, biocompatibility and strength for custom implant abutment fabrication. - Precision Manufacturing
Precision machining produces the pre-machined implant interface, with attention to connection geometry, dimensional consistency and surface finish. The remaining blank is ready for custom abutment milling using a compatible CAD/CAM system.
