Description

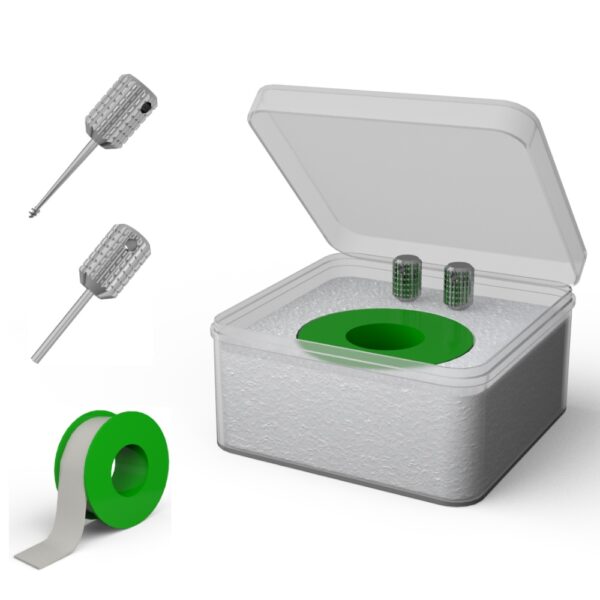

The Implant Abutment Screw Access Hole Filling Kit is designed for filling, packing, and removing materials in implant abutment screw access holes. Proper sealing of the screw access hole is essential to the long-term stability of implant restorations. This kit helps fill and manage the upper portion of the screw access channel, preventing composite resin from flowing into the screw cavity and facilitating easier retrieval during future maintenance.
Specification
| Category / Product No. | Product Name | Specification / Model |
|---|---|---|
| Kit 1 / 7222402000 | Dental Implant Material Remover (18 mm) / Dental Plugger / PTFE Strip | II-S / 15.0 mm / 0.1 mm × 13 mm × 5 m |
| Kit 2 / 7222403000 | Dental Implant Material Remover 22 mm / Dental Plugger / PTFE Strip | II-S / 15.0 mm / 0.1 mm × 13 mm × 5 m |
| Kit 3 / 7222404000 | Dental Implant Material Remover 30 mm / Dental Plugger / PTFE Strip | II-S / 15.0 mm / 0.1 mm × 13 mm × 5 m |
Product Features
Dental Implant Material Remover
Designed for removing filling materials from implant abutment screw access holes.
- Floss hole design helps prevent accidental dropping of the instrument
- Knurled handle increases grip friction for a more secure hold and reduced slipping
- Sharp threaded tip allows quick and efficient removal of filling materials
- Available in three lengths (S 18 mm / R 22 mm / L 30 mm) to meet different mouth opening requirements
Dental Plugger
Designed for packing and compacting filling materials in implant abutment screw access holes.
- Floss hole design helps prevent accidental dropping of the instrument
- Knurled handle increases grip friction for a more secure hold and reduced slipping
- Flat-bottom conical tip increases contact area with the filling material for faster compaction and smoother shaping
Shaped PTFE Strip
Used to fill the upper cavity of the screw access hole and help prevent sealing composite resin from flowing into the screw head area.
- Soft and lightweight, with good adaptability for filling and shaping
- Easy to cut to the desired length as needed
Clinical Procedure for the Implant Abutment Screw Access Hole Filling Kit
- Connect the prosthetic abutment
- Tighten the abutment screw
- Install the crown
- Cut the PTFE tape to an appropriate size (scissors and PTFE tape required)
- After autoclaving, use a dental instrument to pack the PTFE tape into the abutment screw access hole
- Seal and cover the access opening with composite resin
Why Use PTFE Tape Instead of Cotton in the Abutment Channel?
To keep your abutment clean and working perfectly, it’s important to seal the channel correctly. PTFE tape is the best choice because it creates a tight, leak-proof seal that stops water, debris, or other particles from getting inside. It’s durable, won’t break down over time, and can be removed easily if needed.
Avoid using cotton—it can shed fibers, soak up water, and expand, which might interfere with the screw or damage the parts. PTFE tape keeps everything secure, clean, and simple to maintain, giving you safe and reliable performance every time.
Clinical Precautions
- Do not store the instruments in a humid environment for a prolonged period. The PTFE strip should be protected from continuous light exposure whenever possible.
- Immediately after surgery, remove all residues from the instruments, including blood, saliva, tissue, and bone debris. Avoid collisions or impact during cleaning and use.
- After use, the instruments should be soaked in a cleaning solution. Do not use detergents containing high concentrations of chlorine or oxalic acid.
- The product must be sterilized before use (autoclave sterilization: 132°C, 4 minutes, drying time: 30 minutes).
