Description
The MSE Internal Sinus Lift Kit is specially designed for the internal sinus elevation procedure. Its osteotome features a specially designed working tip to help reduce the risk of membrane perforation during direct contact. The kit is equipped with stopper rings in 1 mm increments, allowing for gradual, controlled, and safer elevation. The recommended operating speed is 800–1200 rpm, and it can be used with powered instruments for easier and more efficient operation. Compared with traditional osteotomes, this kit allows for a less invasive approach with a smaller flap area, while also helping provide good primary implant stability.

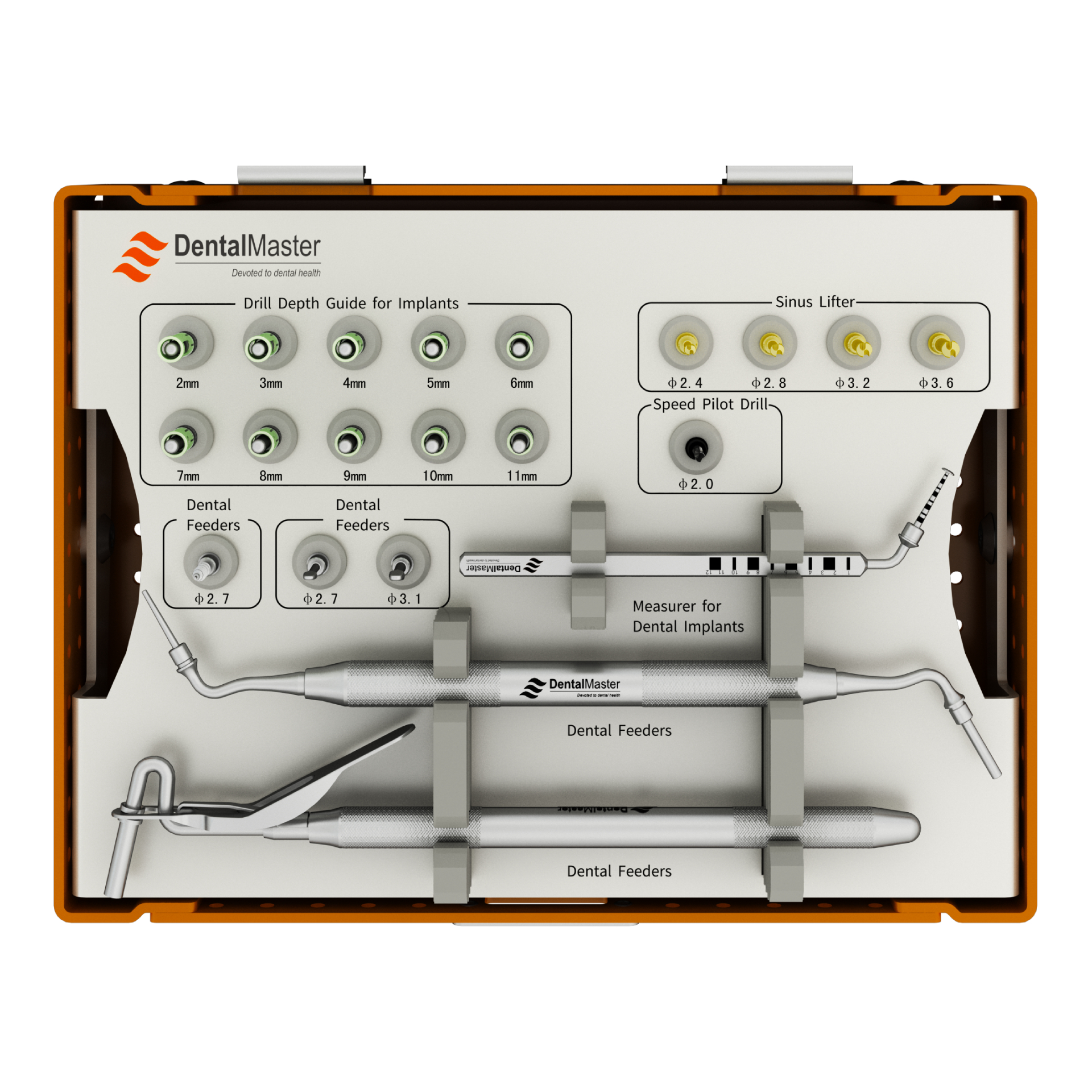

Kit Components & Technical Specifications
| Product Details | Order No. | Picture |
|---|---|---|
| Initial drill / Type Ⅰ ∅2.0×31.5mm | 7201101300 |  |
| MSE bone grinding drill 2.4 / Type Ⅰ ∅2.4mm | 7211600010 |  |
| MSE bone grinding drill 2.8 / Type Ⅰ ∅2.8mm | 7211600020 |  |
| MSE bone grinding drill 3.2 / Type Ⅰ ∅3.2mm | 7211600030 |  |
| MSE bone grinding drill 3.6 / Type Ⅰ ∅3.6mm | 7211600040 |  |
| Manual bone powder extruder / Type Ⅰ ∅1.0/∅2.2m | 7211600050 |  |
| Bone powder spreader / Type Ⅱ ∅3.1mm | 7211600060 |  |
| Bone powder spreader / Type Ⅱ ∅2.7mm | 7211600070 | |
| Depth measure ruler / Type Ⅰ ∅2.8mm | 7211600080 |  |
| Manual bone powder conveyor / Type Ⅰ 0.05CC | 7211600090 |  |
| Bone powder conveyor / Type Ⅲ ∅2.7mm | 7211600100 |  |
| Stopper 2mm / 2mm | 7211600110 |  |
| Stopper 3mm / 3mm | 7211600120 |  |
| Stopper 4mm / 4mm | 7211600130 |  |
| Stopper 5mm / 5mm | 7211600140 |  |
| Stopper 6mm / 6mm | 7211600150 |  |
| Stopper 7mm / 7mm | 7211600160 |  |
| Stopper 8mm / 8mm | 7211600170 |  |
| Stopper 9mm / 9mm | 7211600180 |  |
| Stopper 10mm / 10mm | 7211600190 |  |
| Stopper 11mm / 11mm | 7211600200 |  |
Why Choose This Sinus Crestal Lift Kit?
1. Safer Crestal Bone Grinding
The bone grinding drills feature a smooth, rounded spherical tip, helping clinicians remove bone more gently and reduce sharp contact during sinus floor preparation.
2. More Controlled Bone Graft Placement
The kit includes dedicated instruments for delivering, pushing, rotating, and spreading bone graft material, helping achieve more even graft distribution inside the elevated sinus space.

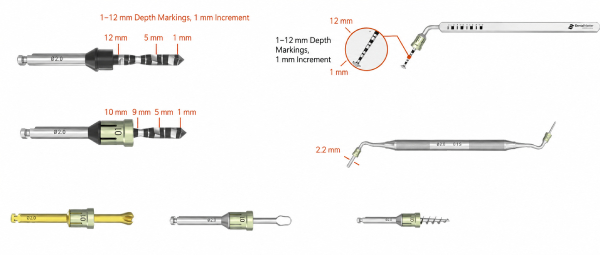

3. 1 mm Increment Stopper Rings
Stopper rings in 1 mm increments allow gradual depth control for a safer and more predictable internal sinus lift procedure. All applicable instruments can be used with stoppers, except the manual bone powder conveyor.
4. Designed for Internal Sinus Elevation
The system supports a minimally invasive crestal approach, helping clinicians perform sinus elevation with better depth control, graft handling, and procedural efficiency.
Sinus Crestal Lift Kit: Clinical Use & Animation Demo
This video demonstration showcases how the MSE Internal Sinus Lift Kit facilitates controlled internal sinus elevation with a specially designed bone grinding drill and 1 mm incremental stopper. Watch how precision engineering enables step-by-step depth control, optimized bone graft delivery, and an efficient surgical workflow for implant placement.
