Description

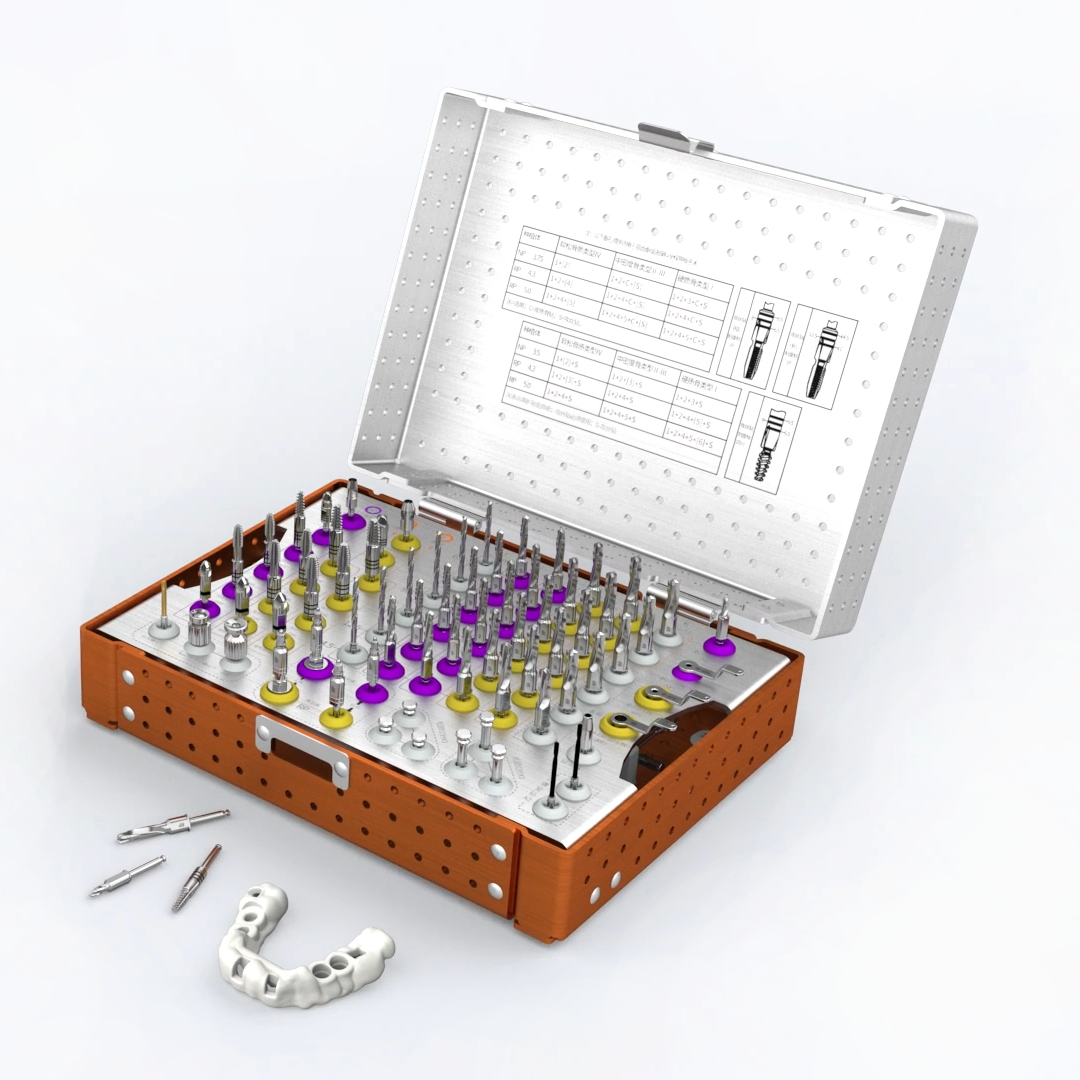

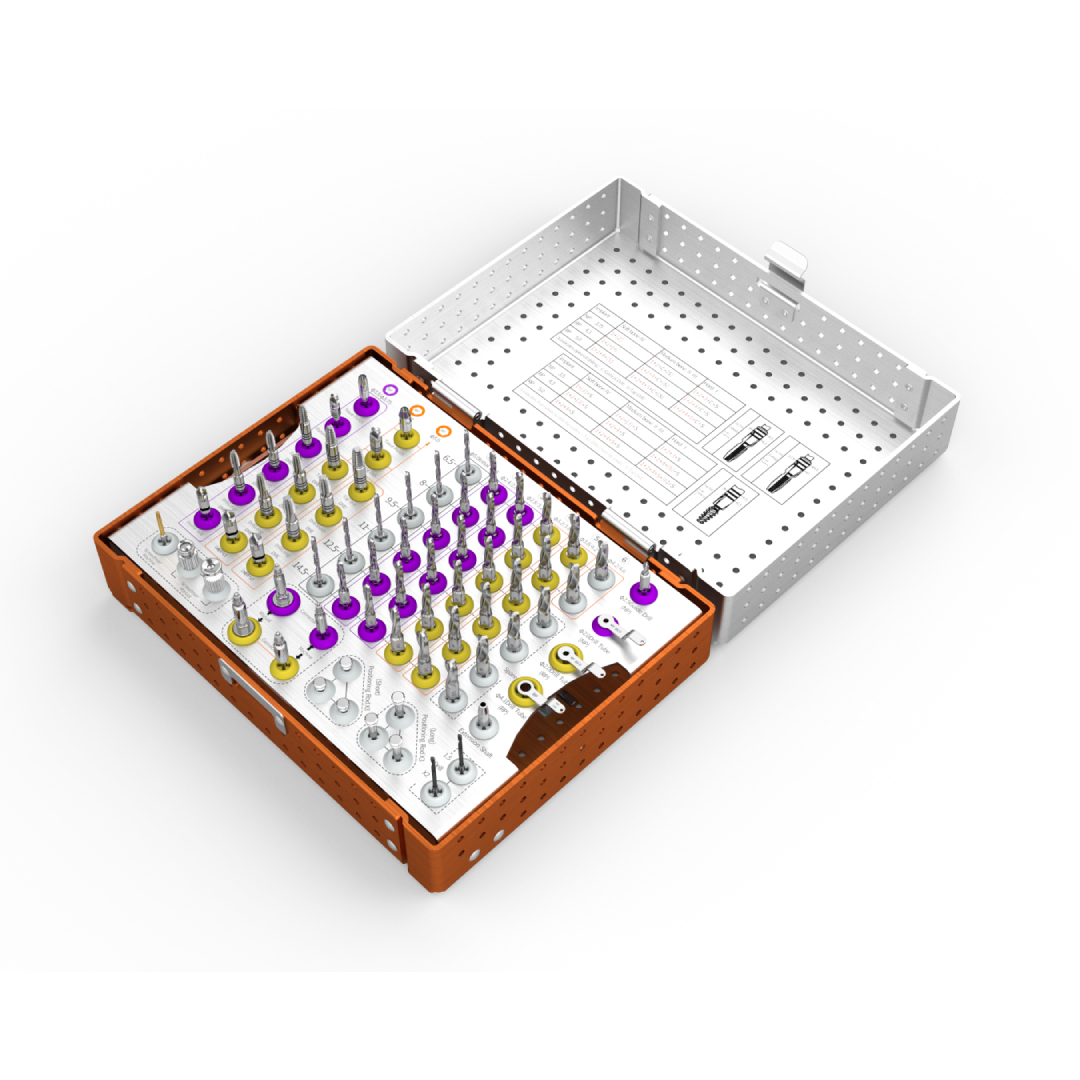

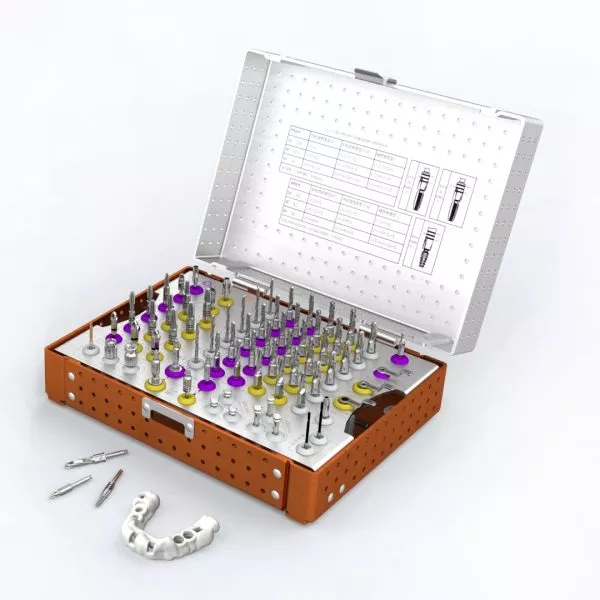

Fully Guided Implant Surgery Kit suitable for guided, precision, and regularimplantation,as well as otherimplantation solutionsStepwise drilling with dual retention navigation formore convenient and accurate implantation

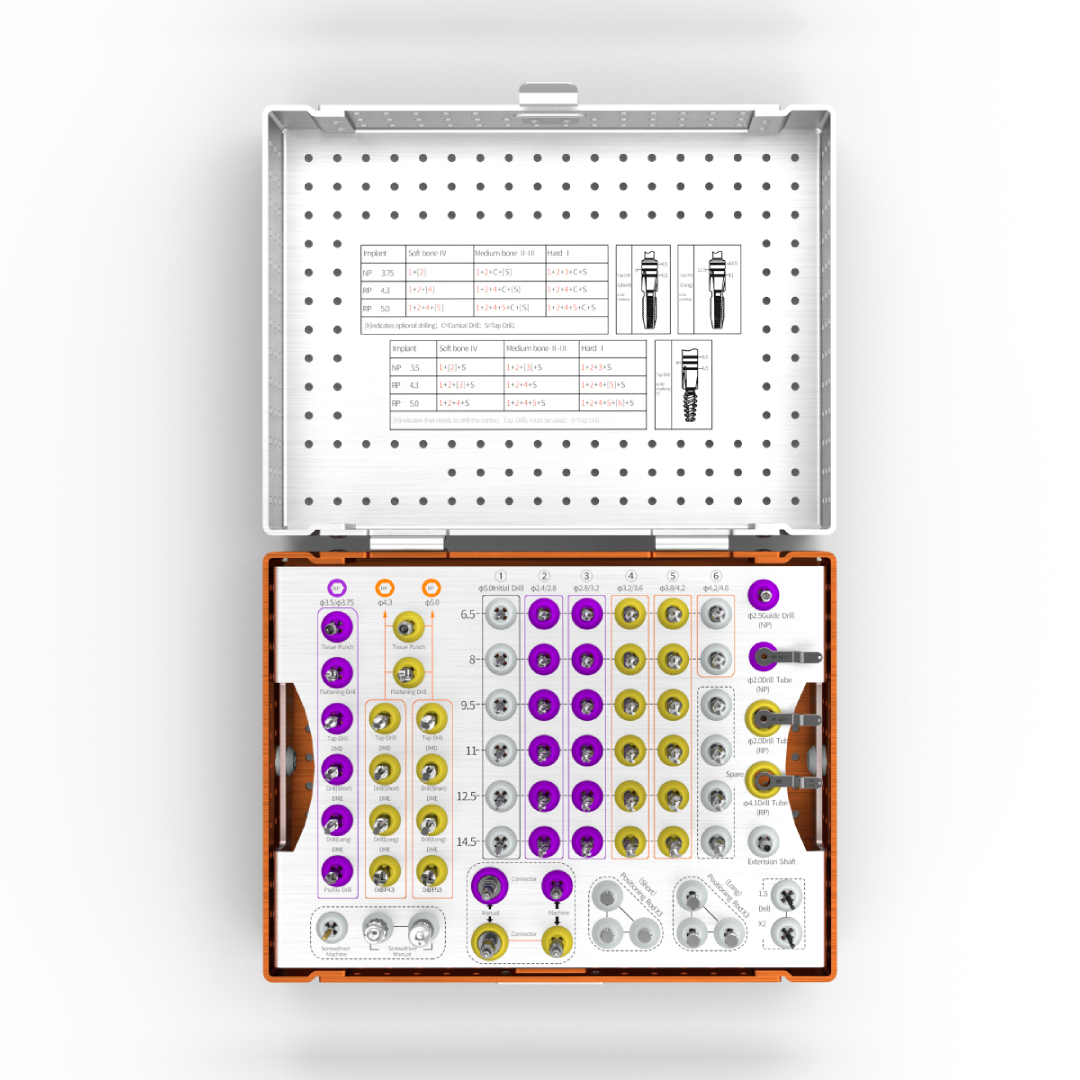

The Kit Includes:
| Name | Specifications | Quantity |
|---|---|---|
| Flat Drill | NP φ3.5 / φ3.75 mm | 1 |
| Flat Drill | NP φ4.3 / φ5.0 mm | 1 |
| Pilot Drill | φ2.0 × 32.3 mm | 1 |
| Pilot Drill | φ2.0 × 32.8 mm | 1 |
| Pilot Drill | φ2.0 × 35.3 mm | 1 |
| Pilot Drill | φ2.0 × 36.8 mm | 1 |
| Pilot Drill | φ2.0 × 38.3 mm | 1 |
| Pilot Drill | φ2.0 × 40.3 mm | 1 |
| Positioning Drill | NP φ2.0 / φ2.5 × 30.8 mm | 1 |
| Reamer | NP φ2.4 / φ2.8 × 31.8 mm | 1 |
| Reamer | NP φ2.4 / φ2.8 × 33.3 mm | 1 |
| Reamer | NP φ2.4 / φ2.8 × 34.8 mm | 1 |
| Reamer | NP φ2.4 / φ2.8 × 36.3 mm | 1 |
| Reamer | NP φ2.4 / φ2.8 × 37.8 mm | 1 |
| Reamer | NP φ2.4 / φ2.8 × 39.8 mm | 1 |
| Reamer | NP φ2.8 / φ3.2 × 31.8 mm | 1 |
| Reamer | NP φ2.8 / φ3.2 × 33.3 mm | 1 |
| Reamer | NP φ2.8 / φ3.2 × 34.8 mm | 1 |
| Reamer | NP φ2.8 / φ3.2 × 36.3 mm | 1 |
| Reamer | NP φ2.8 / φ3.2 × 37.8 mm | 1 |
| Reamer | NP φ2.8 / φ3.2 × 39.8 mm | 1 |
| Reamer | RP φ3.2 / φ3.6 × 31.8 mm | 1 |
| Reamer | RP φ3.2 / φ3.6 × 33.3 mm | 1 |
| Reamer | RP φ3.2 / φ3.6 × 34.8 mm | 1 |
| Reamer | RP φ3.2 / φ3.6 × 36.3 mm | 1 |
| Reamer | RP φ3.2 / φ3.6 × 37.8 mm | 1 |
| Reamer | RP φ3.2 / φ3.6 × 39.8 mm | 1 |
| Reamer | RP φ3.8 / φ4.2 × 31.8 mm | 1 |
| Reamer | RP φ3.8 / φ4.2 × 33.3 mm | 1 |
| Reamer | RP φ3.8 / φ4.2 × 34.8 mm | 1 |
| Reamer | RP φ3.8 / φ4.2 × 36.3 mm | 1 |
| Reamer | RP φ3.8 / φ4.2 × 37.8 mm | 1 |
| Reamer | RP φ3.8 / φ4.2 × 39.8 mm | 1 |
| Reamer | RP φ4.2 / φ4.6 × 31.8 mm | 1 |
| Reamer | RP φ4.2 / φ4.6 × 33.3 mm | 1 |
| Soft Tissue Punch | NP 3.5 / 3.75 mm | 1 |
| Soft Tissue Punch | RP 4.3 / 5.0 mm | 1 |
| Drill Guide | NP φ2.0 mm | 1 |
| Drill Guide | RP φ2.0 mm | 1 |
| Drill Guide | RP φ4.1 mm | 1 |
| Drill Extension | 25 mm | 1 |
| Positioning Rod | 1.5 mm Long | 1 |
| Positioning Rod | 1.5 mm Short | 1 |
| Pin Drill | φ1.5 × 36 mm | 1 |
| Implant Driver | RP 29.5 mm | 1 |
| Implant Driver | RP 32 mm | 1 |
| Implant Driver | NP 29.5 mm | 1 |
| Implant Driver | NP 32 mm | 1 |
| Cortical Drill | RP φ3.75 × 28.5 mm | 1 |
| Cortical Drill | RP φ4.3 × 28.5 mm | 1 |
| Cortical Drill | RP φ5.0 × 28.5 mm | 1 |
| Tapping Drill | RP φ4.3 × 32 mm | 1 |
| Tapping Drill | RP φ4.3 × 36 mm | 1 |
| Tapping Drill | RP φ5.0 × 32 mm | 1 |
| Tapping Drill | RP φ5.0 × 36 mm | 1 |
| Tapping Drill | DMD φ3.5 × 36 mm | 1 |
| Tapping Drill | DME φ3.75 × 32 mm | 1 |
| Tapping Drill | DME φ3.75 × 36 mm | 1 |
| Manual Screwdriver | 22 mm | 1 |
| Manual Screwdriver | 28 mm | 1 |
| Machine Screwdriver | 20 mm | 1 |
| Torque Wrench | φ7 × 70 N | 1 |

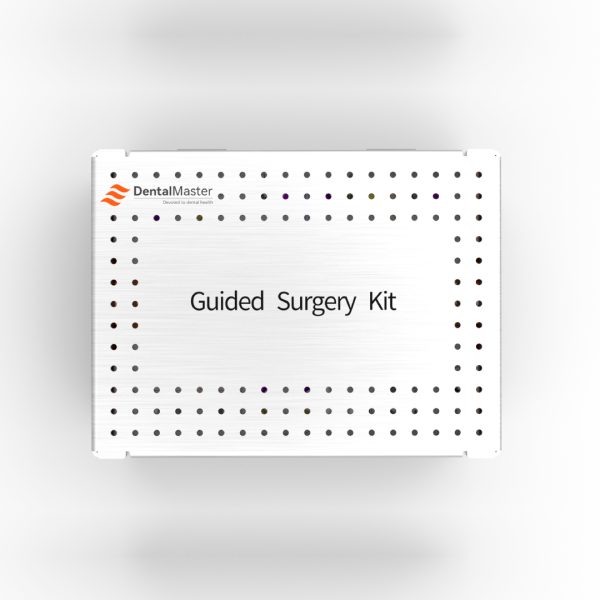

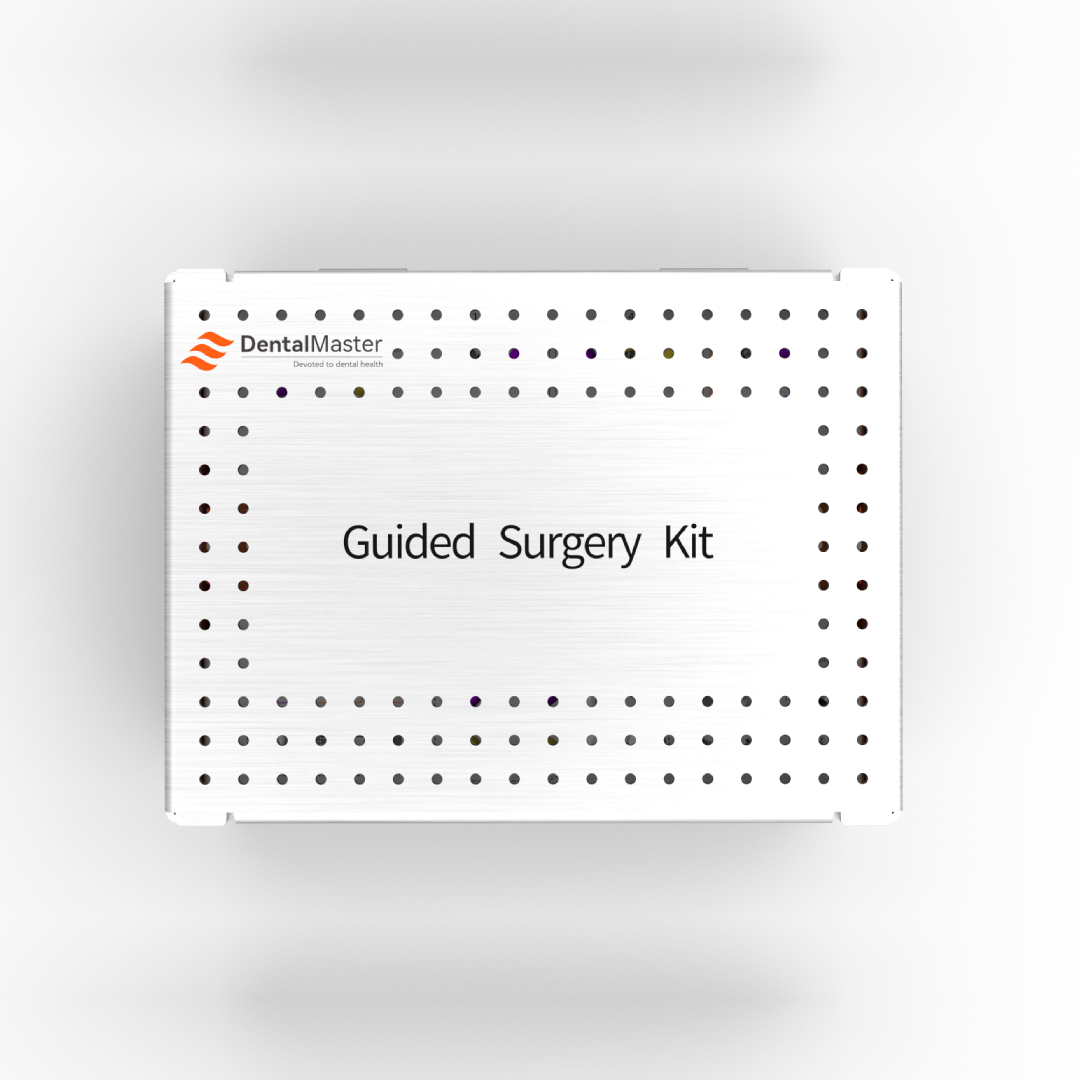

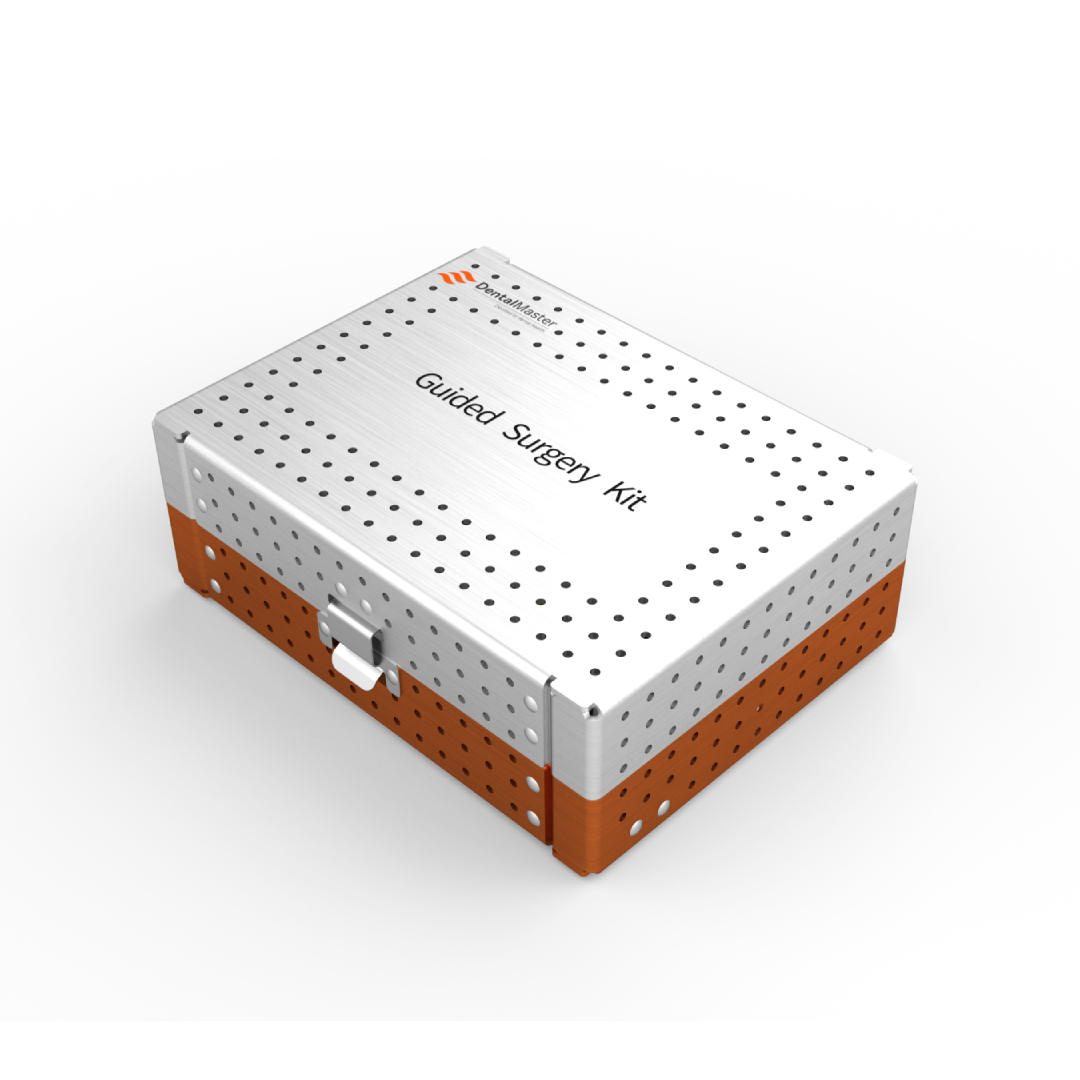

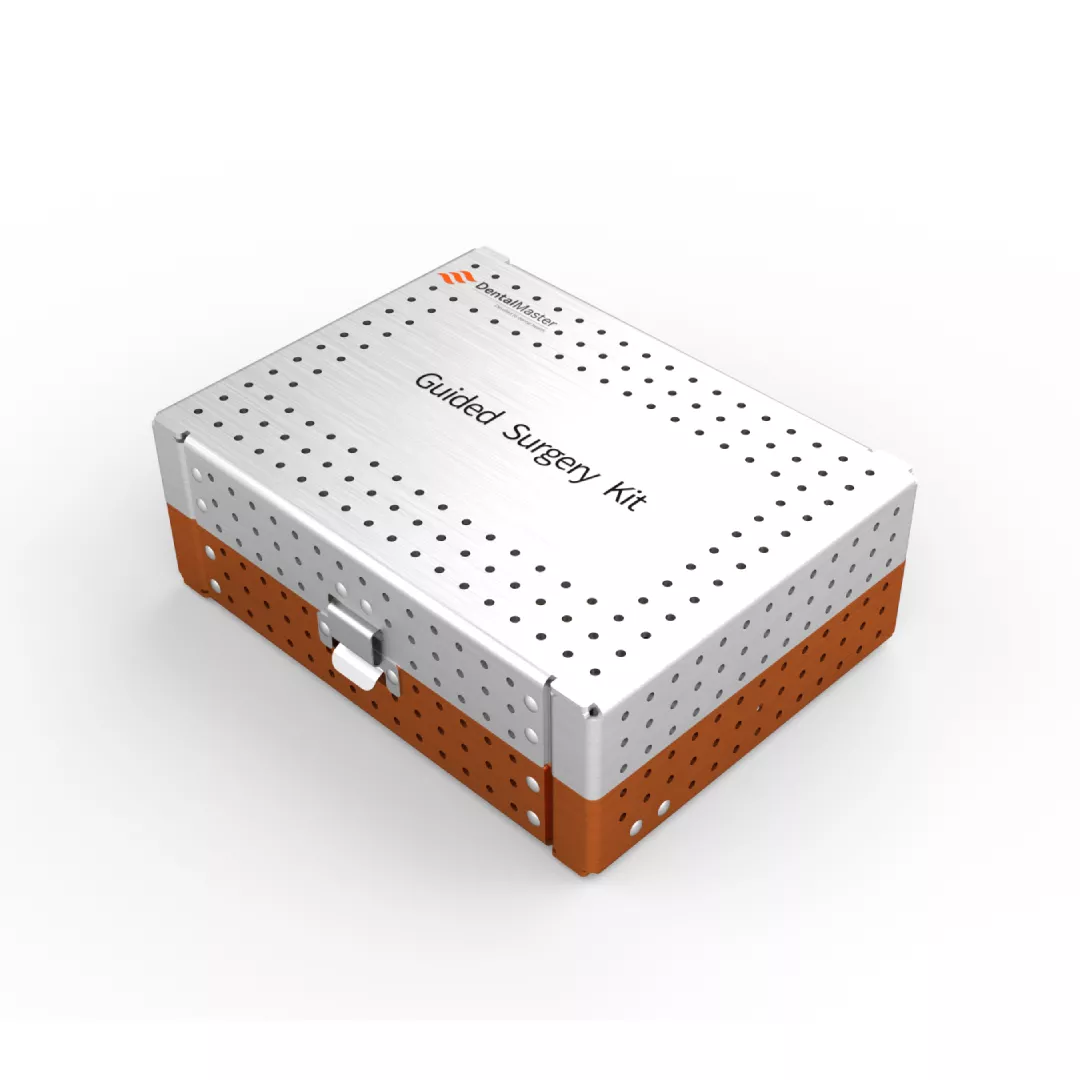

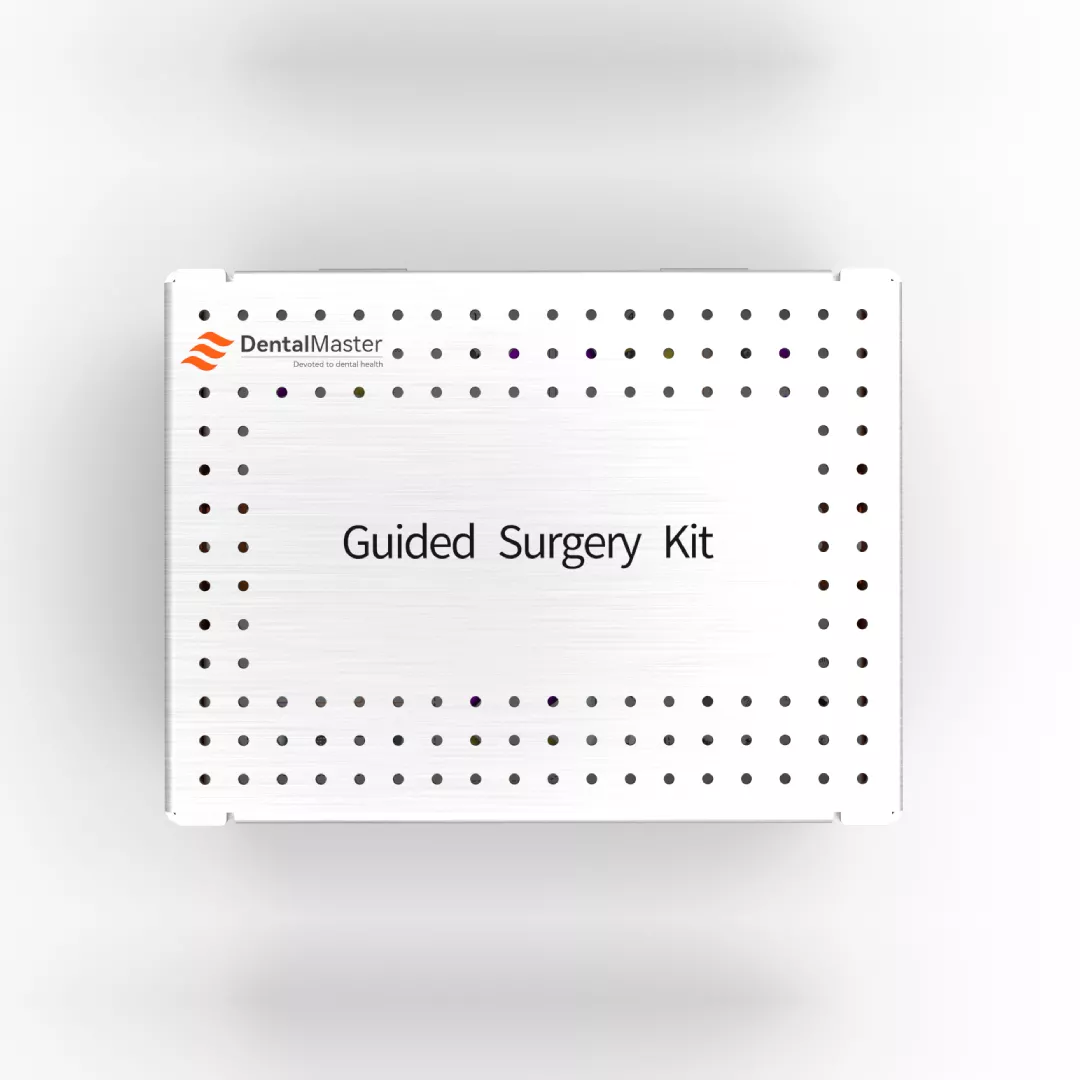

| Surgery Kit Box | — | 1 |
