Alveolar Ridge Split & Expansion Kit

Description

The Dental Alveolar Ridge Splitting & Expansion Surgical Kit is designed to support horizontal expansion of selected narrow alveolar ridges before or in conjunction with dental implant placement.

Unlike basic ridge-splitting kits that contain only chisels, this complete system combines three circular saw blades, four progressively sized axe-shaped ridge splitters, a bone milling instrument and a reusable handle.

The saw blades are used to prepare the initial osteotomy, while the four ridge splitters provide a clear progression from 1.5 mm to 3.0 mm. This structured sequence allows clinicians to gradually increase the expansion rather than attempting to achieve the required width with a single instrument.

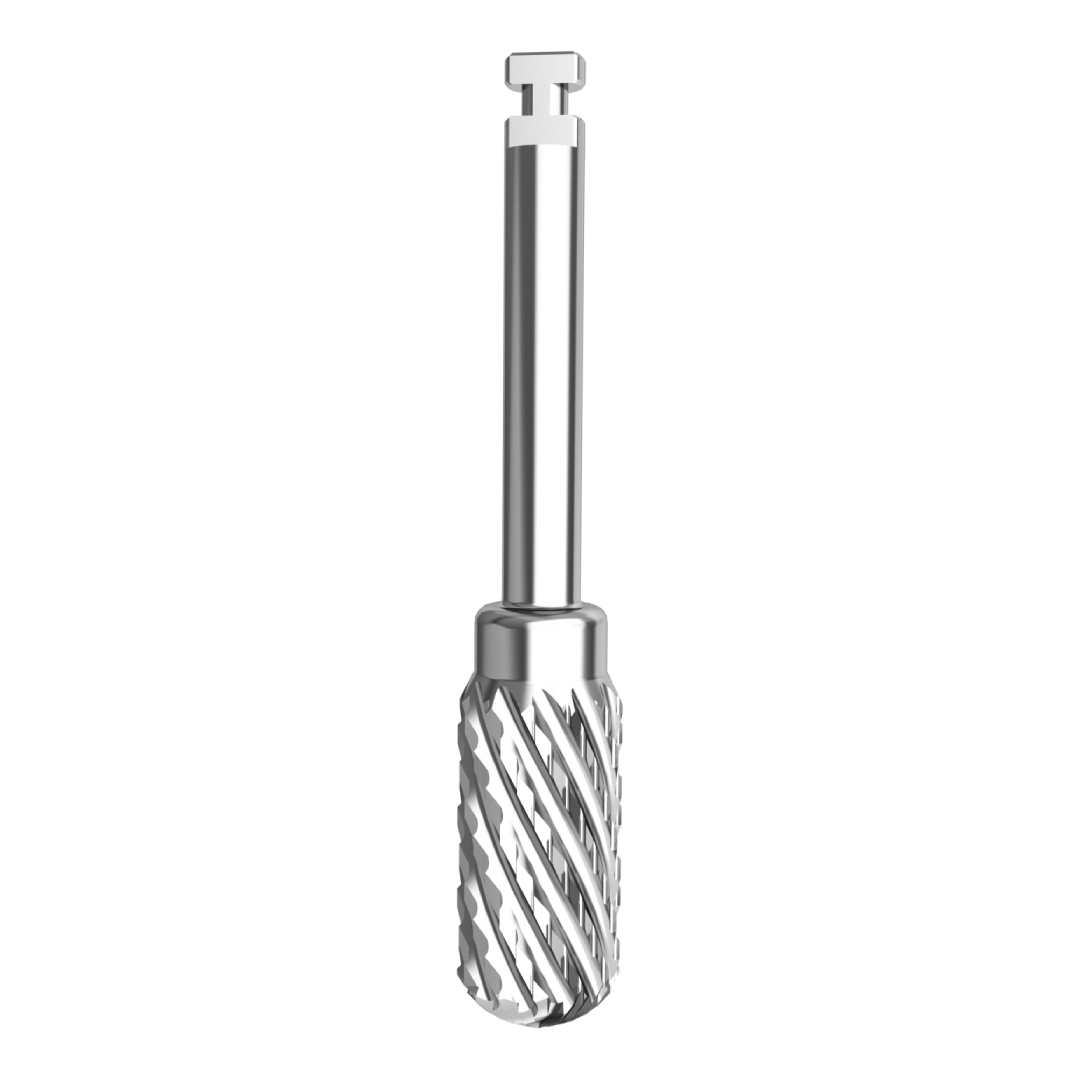

The included bone milling instrument can be used for additional bone contouring or refinement according to the planned surgical procedure.

5 Key Benefits

1. Complete Split-and-Expand Workflow
   Combines ridge cutting, progressive splitting, expansion and bone contouring in one organized surgical kit. There is no need to purchase separate saw and ridge-splitting chisel sets.

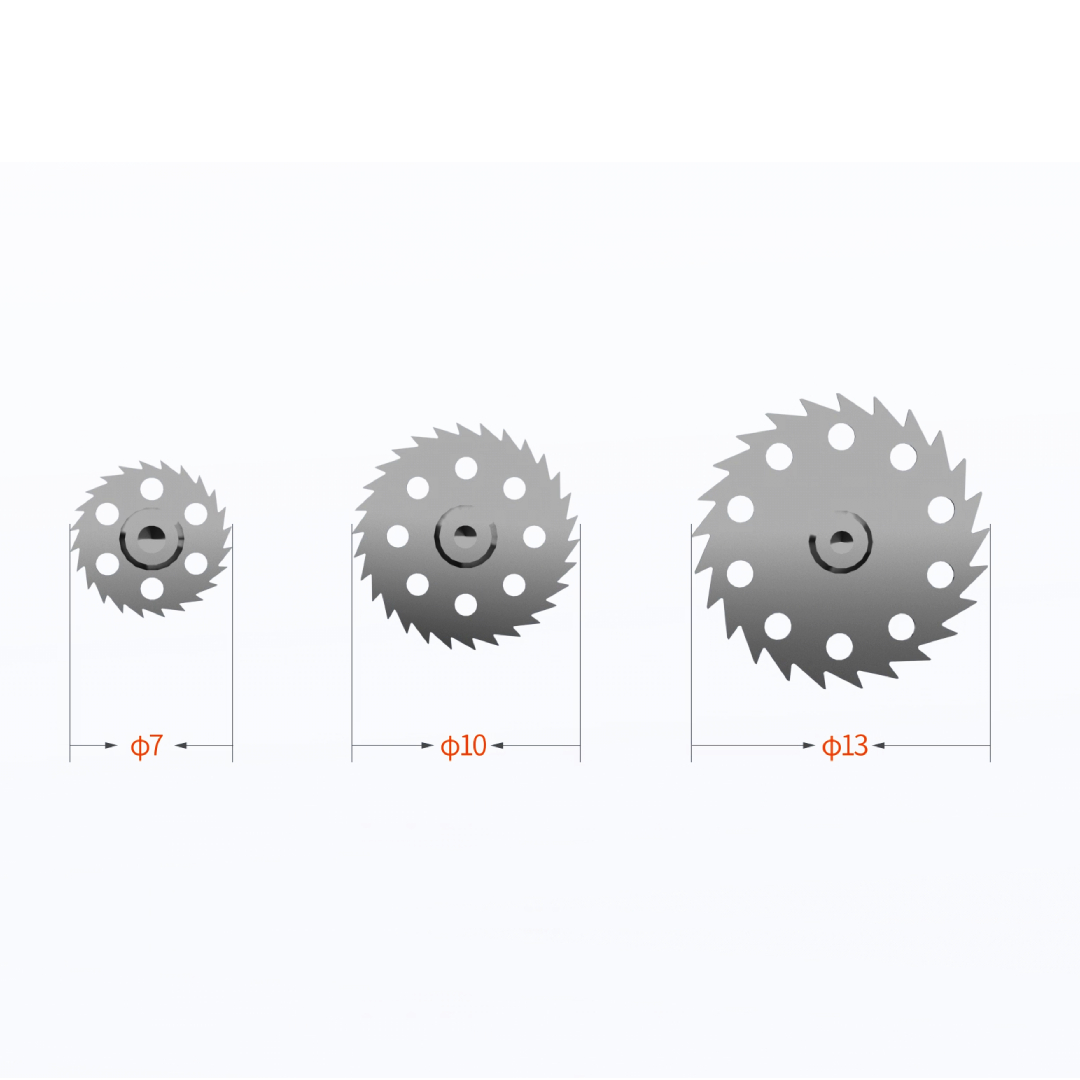

2. Three Saw Blade Diameters
   Includes Ø7, Ø10 and Ø13 mm circular saw blades, allowing clinicians to select an appropriate blade size according to the surgical area and planned osteotomy length.

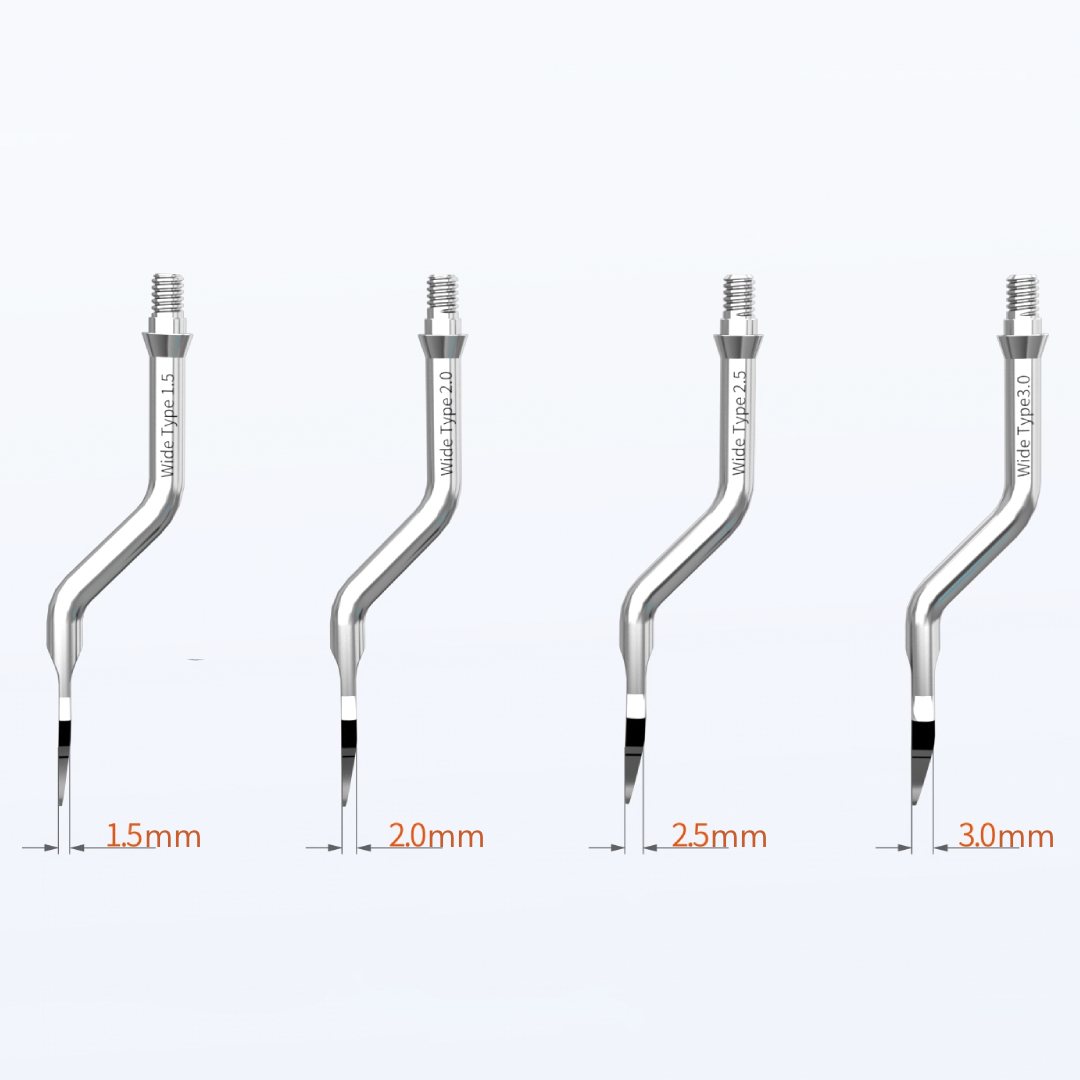

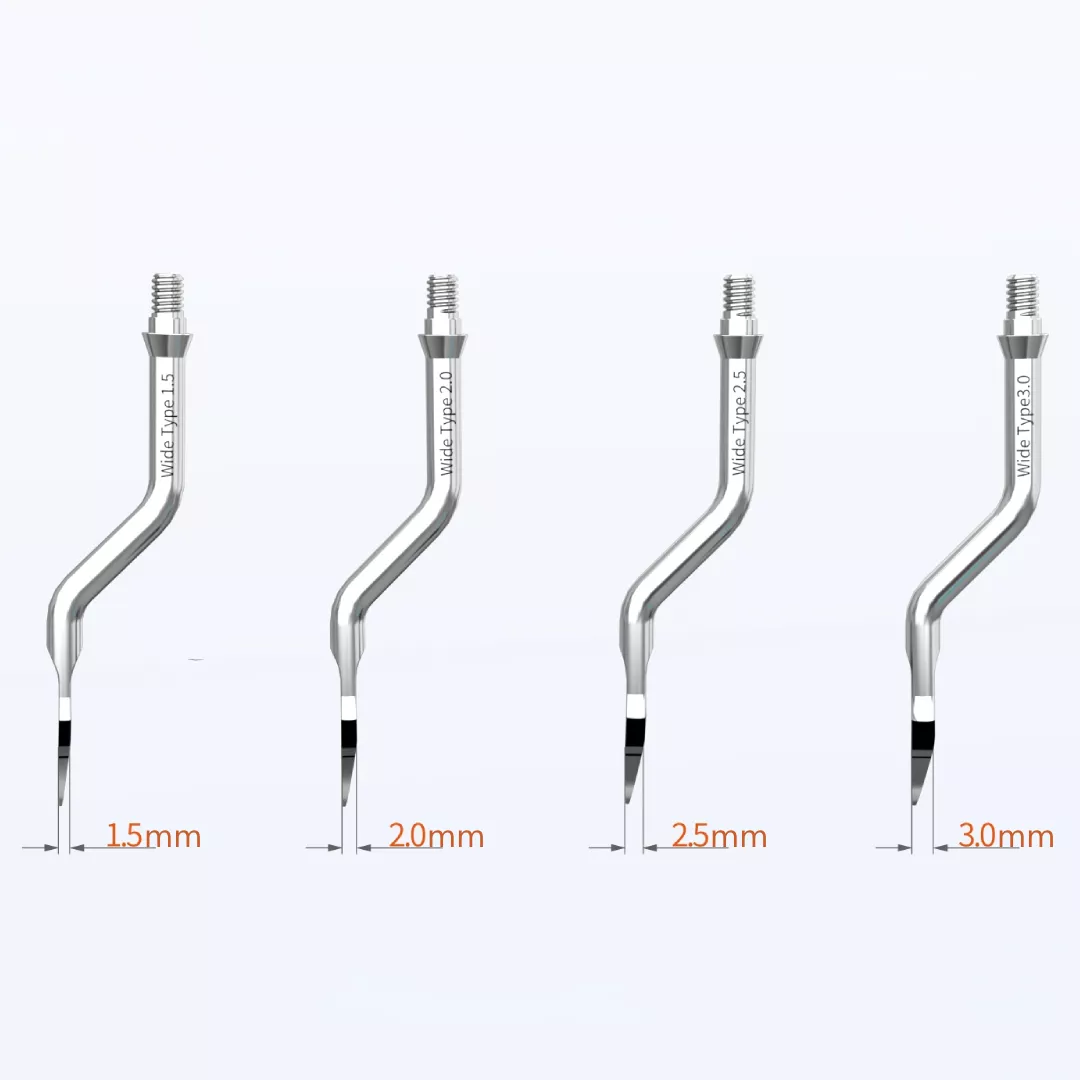

3. Four Progressive Splitting Sizes
   Four axe-shaped ridge splitters are arranged in a gradual sequence of 1.5, 2.0, 2.5 and 3.0 mm, supporting controlled, step-by-step expansion rather than relying on a single splitting instrument.
4. Direct Tactile Control
   The manual splitting design provides direct tactile feedback during instrument advancement. It offers a straightforward alternative for clinicians who prefer a chisel-based workflow over more complex screw-driven spreading systems.

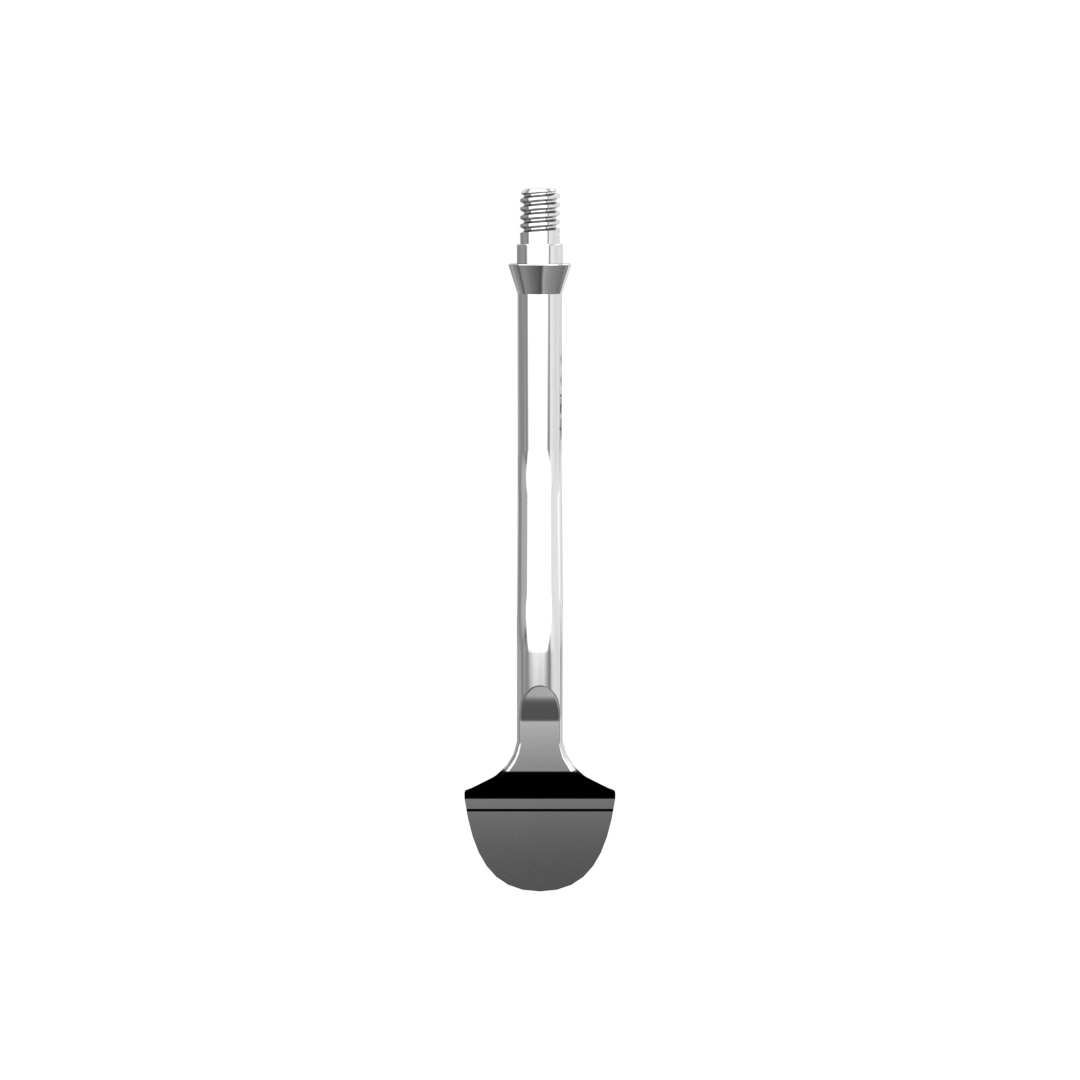

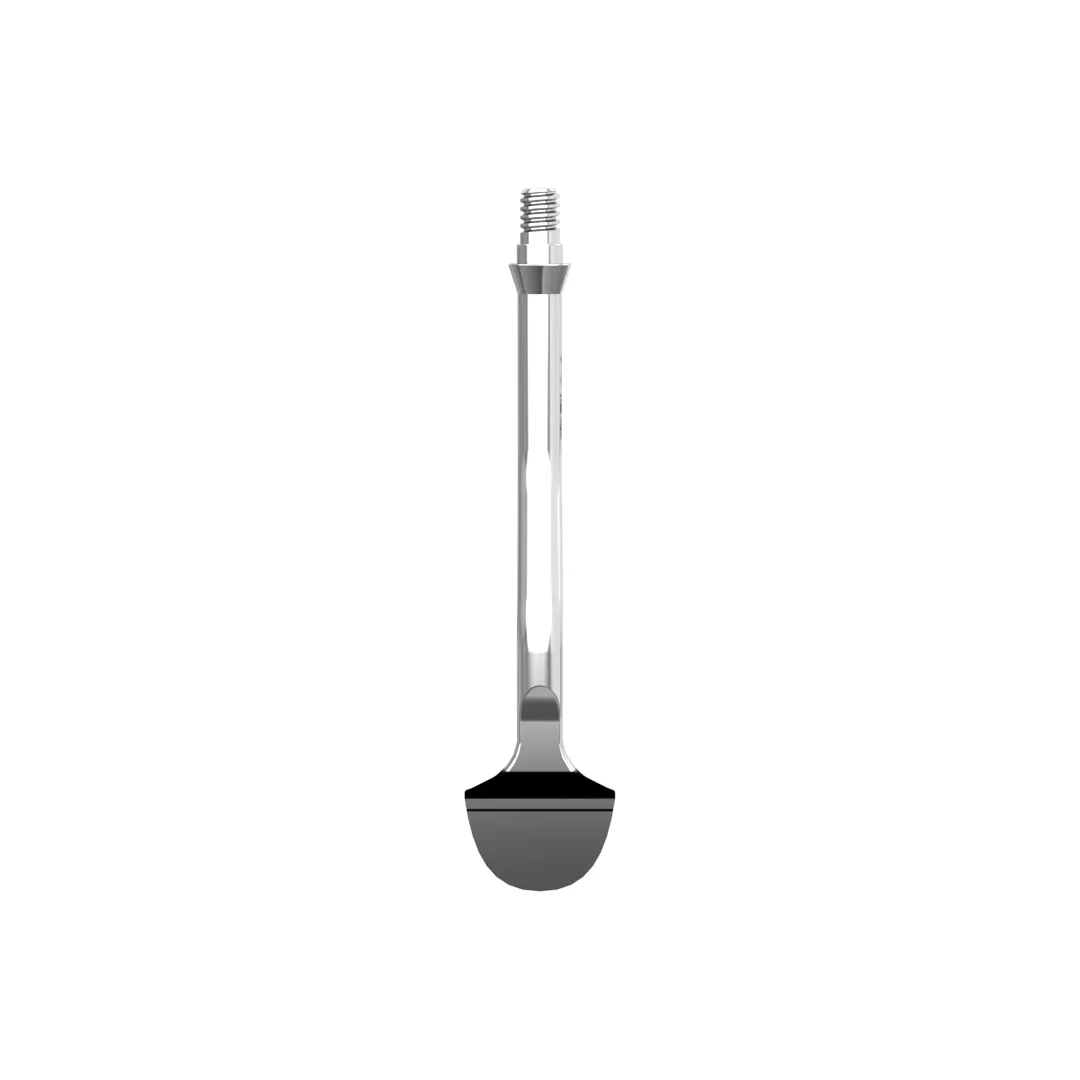

5. Axe-Shaped Working Ends
   The narrow-to-wide axe-shaped profile is designed to enter the prepared osteotomy and progressively apply lateral expansion as the instrument advances.

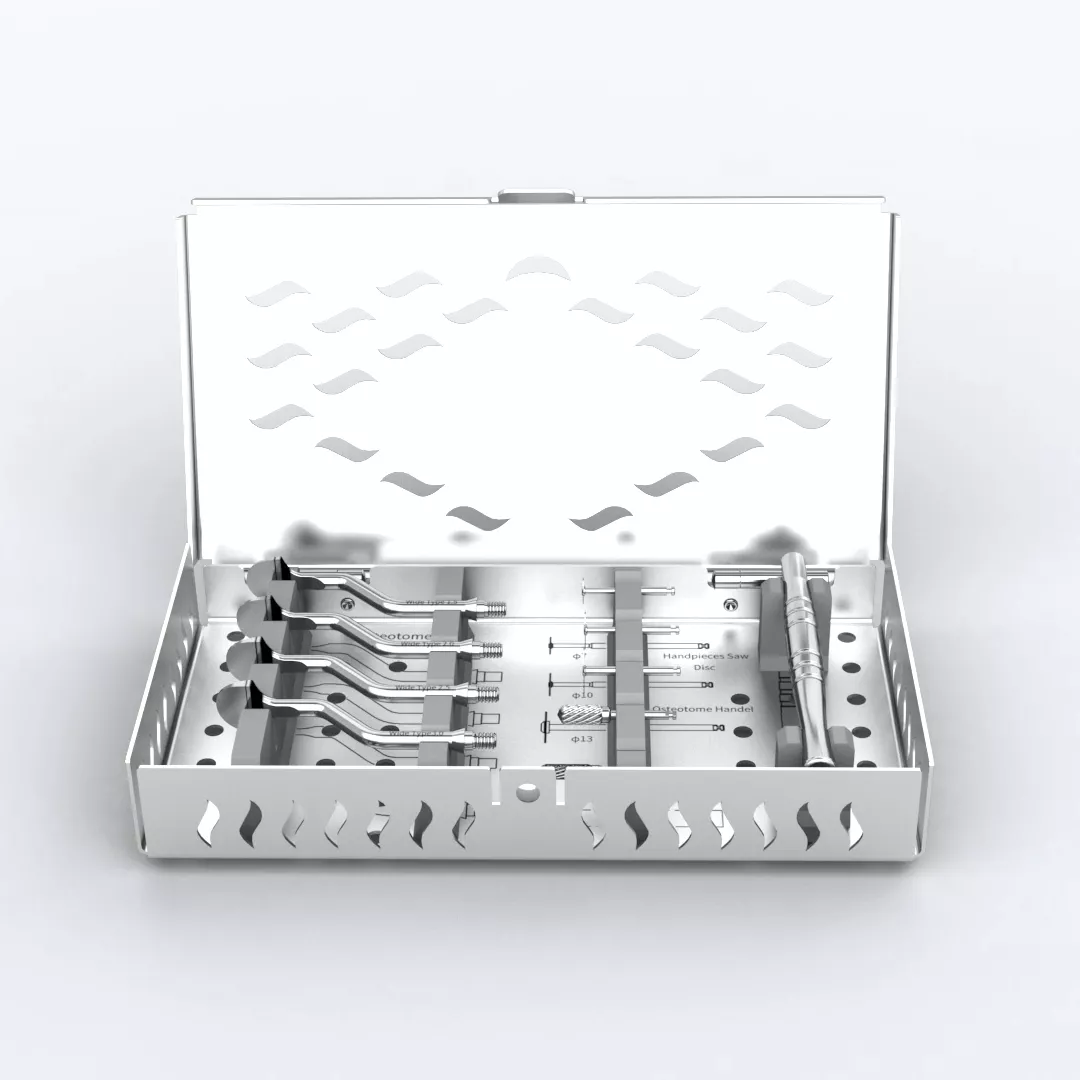

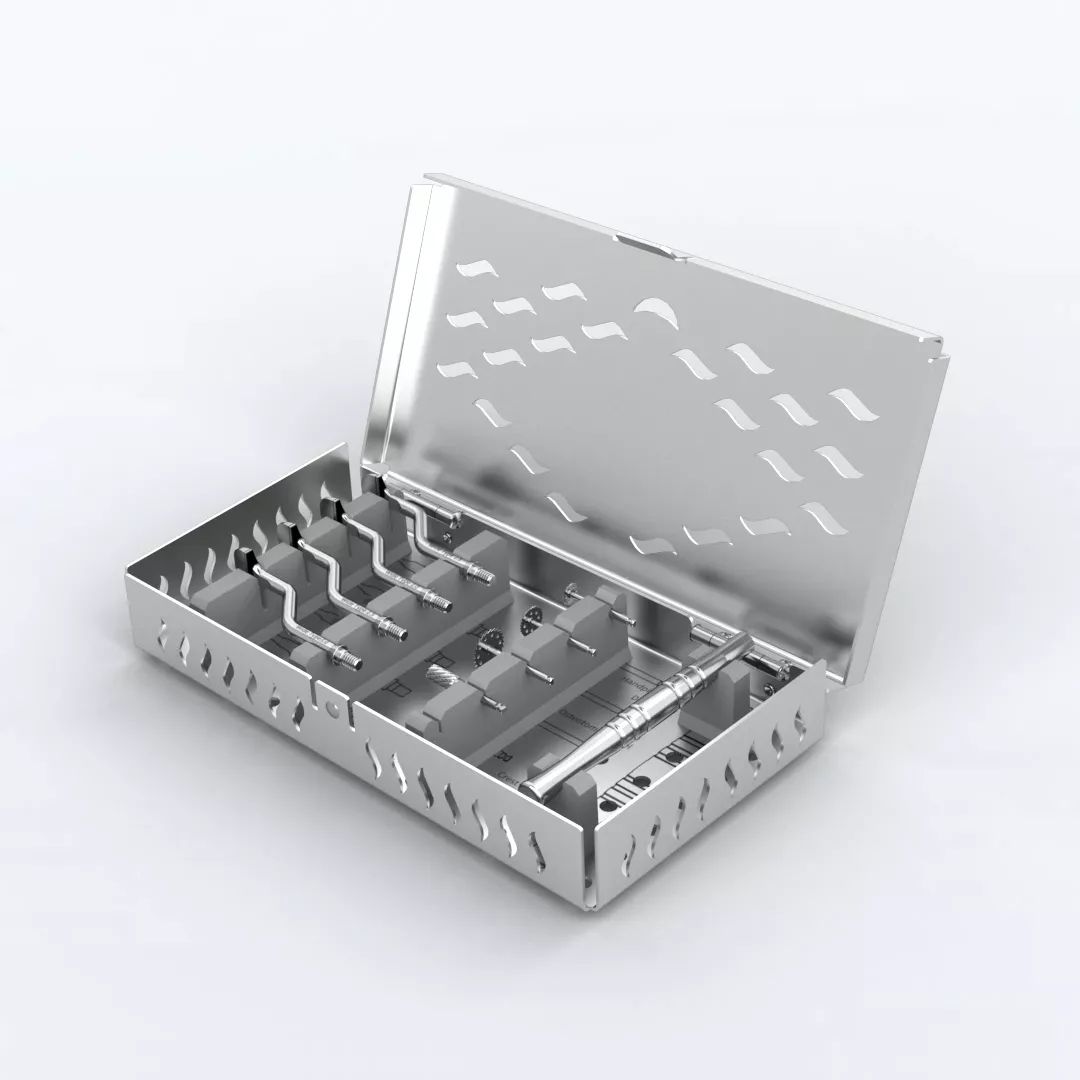

Kit Includes

• 4 Axe-Shaped Ridge Splitters
  1.5 mm
  2.0 mm
  2.5 mm
  3.0 mm
• 3 Circular Saw Blades
  Ø7 mm
  Ø10 mm
  Ø13 mm
• 1 Bone Milling Instrument

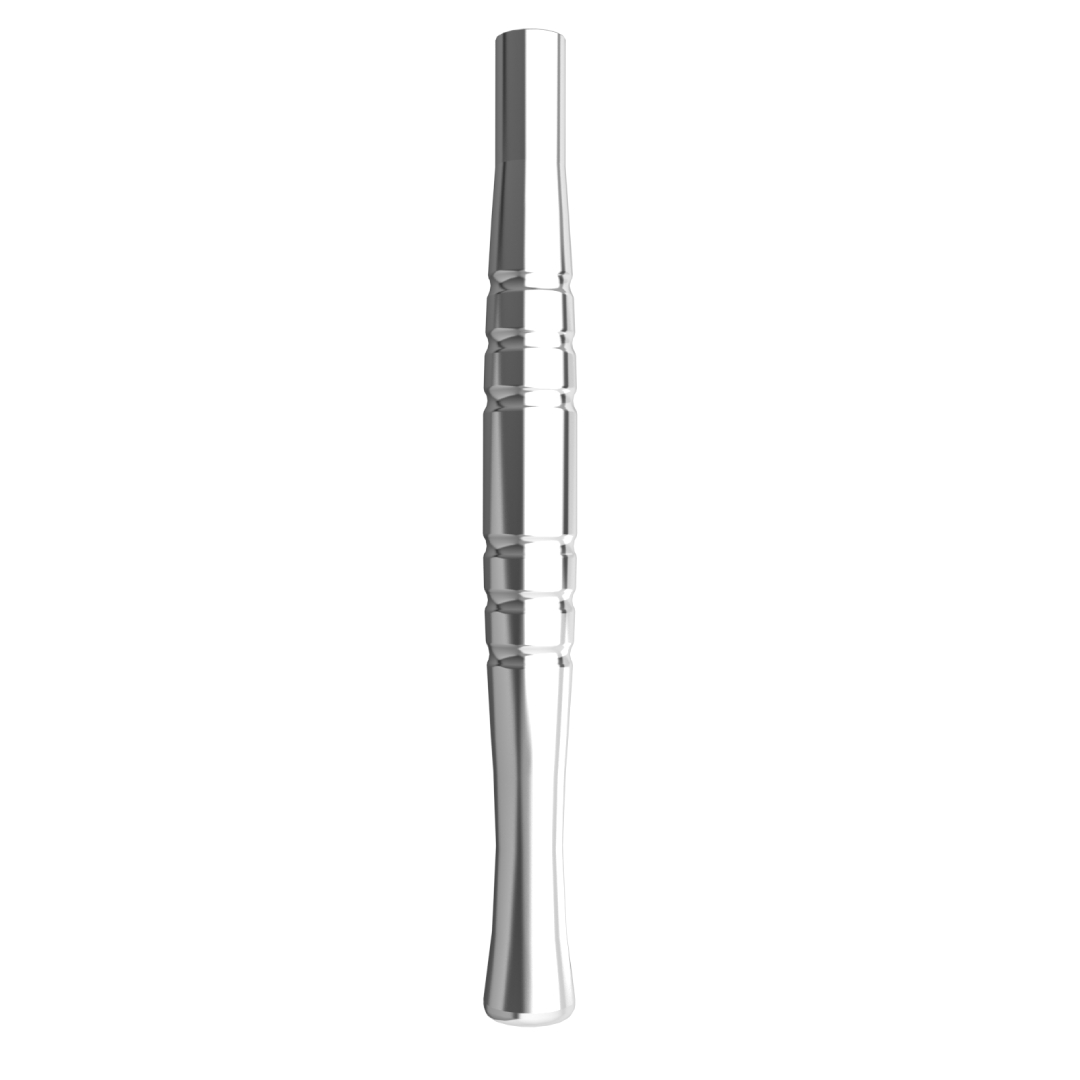

• 1 Reusable Instrument Handle

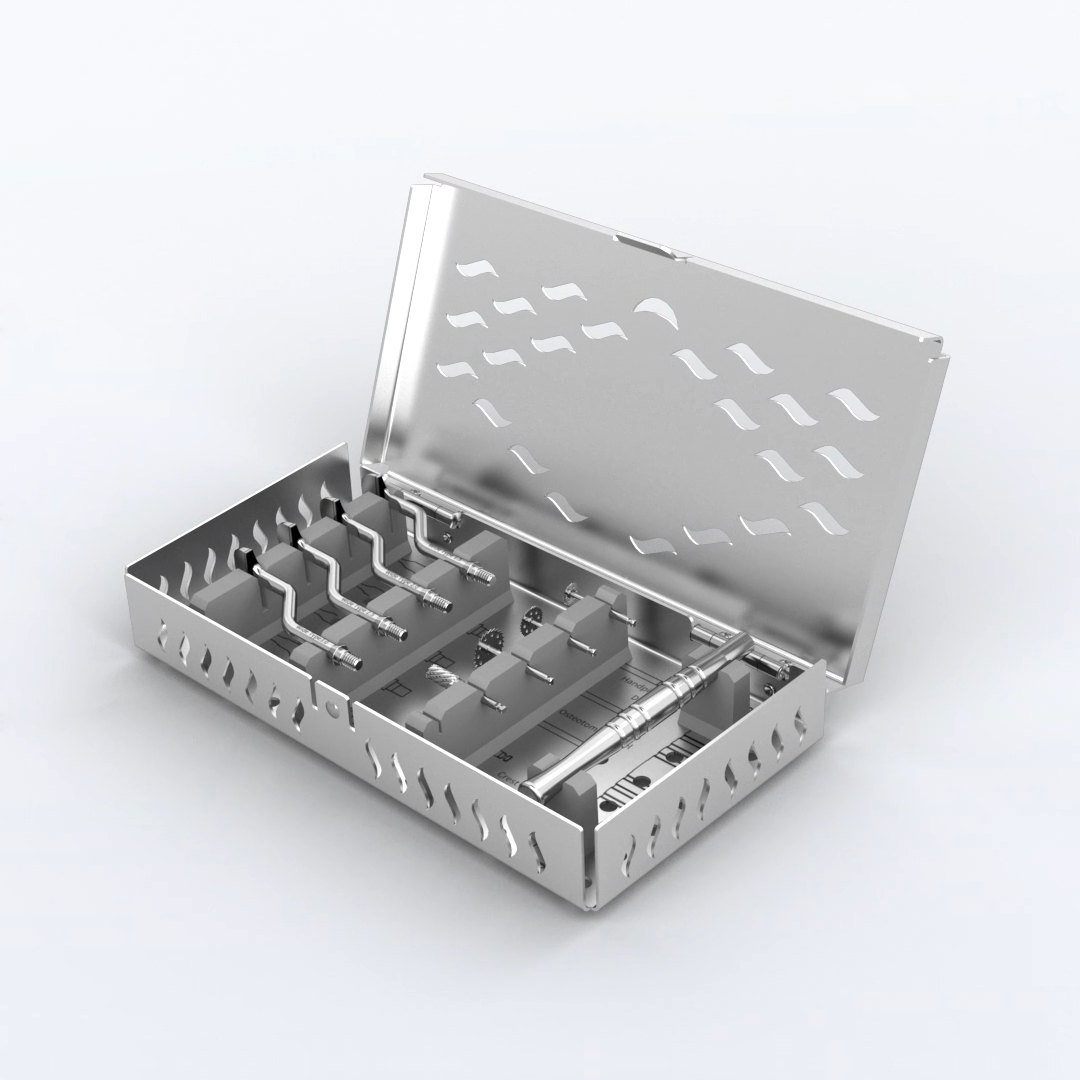

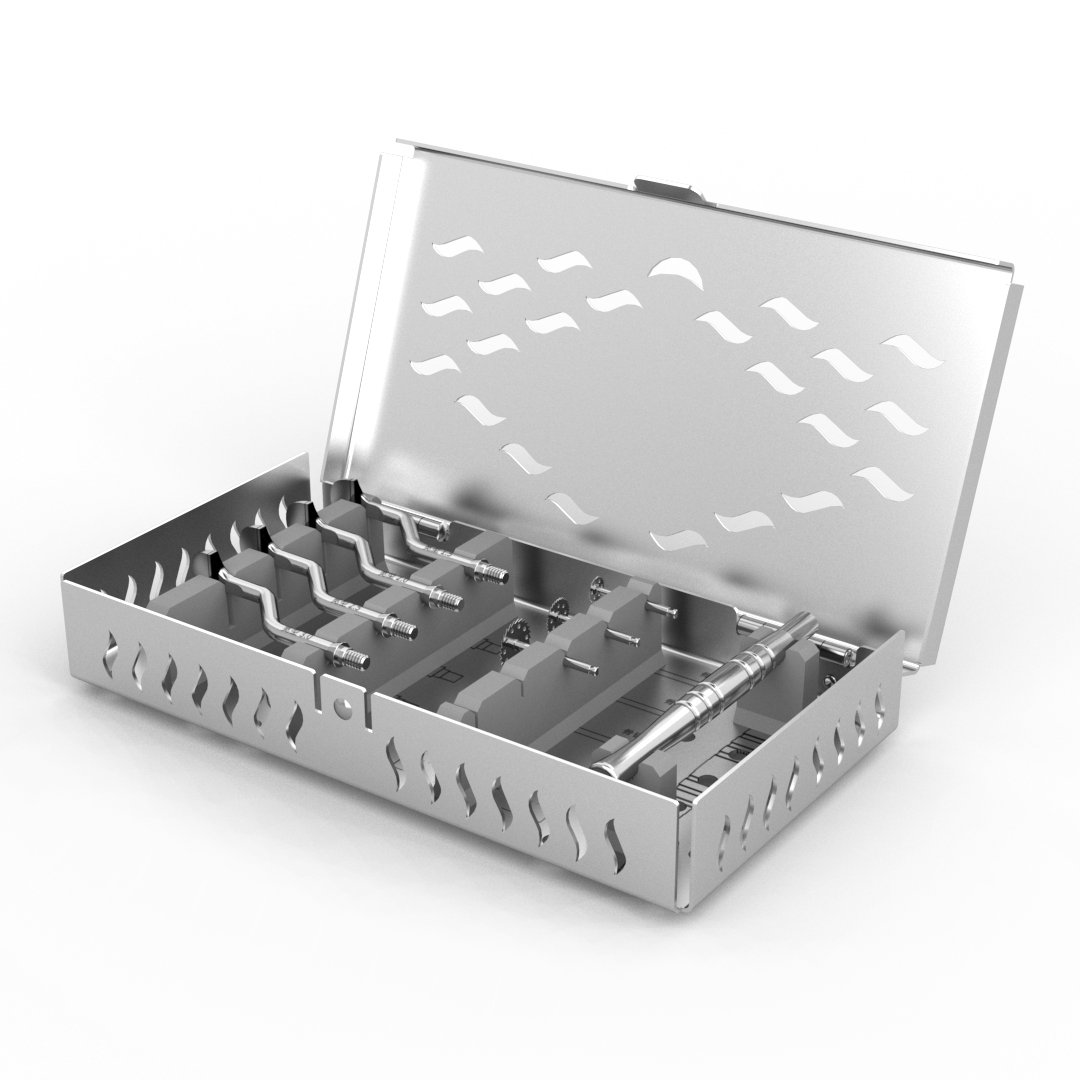

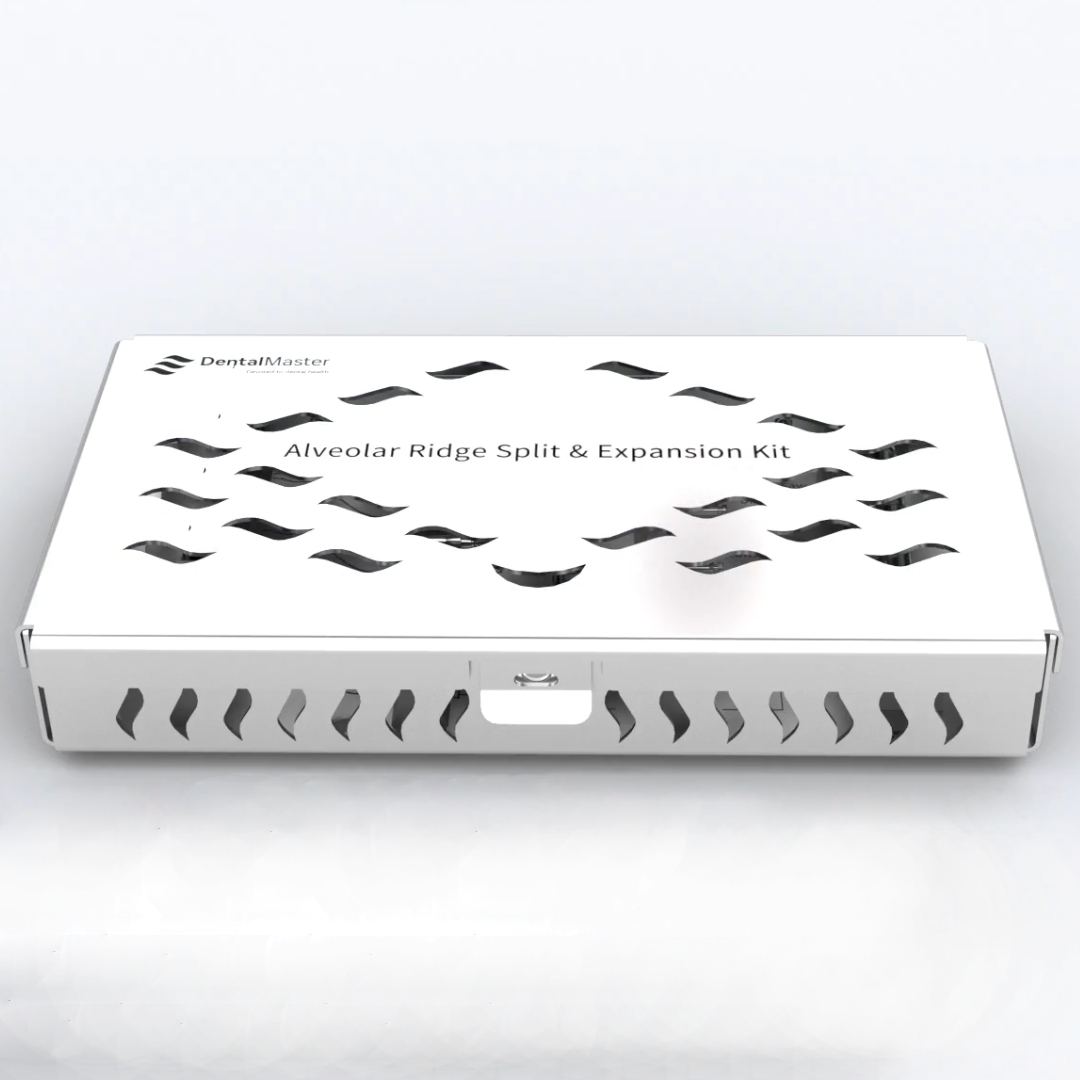

• 1 Surgical Instrument Case

Material

Made of surgical stainless steel.

Indications

Designed for splitting and gradual horizontal expansion of selected narrow alveolar ridges where additional ridge width is required for dental implant placement.

Patient selection should be based on clinical examination and radiographic evaluation, including residual ridge width and height, cortical bone thickness, bone quality and ridge morphology.

Contraindications

Patients with alveolar bone width less than 4 mm
Patients who are allergic to stainless steel and titanium alloys
